8ZR-FXE ENGINE CONTROL  HEATED OXYGEN SENSOR  INSTALLATION

1.552,0.76 1.052,0.76 true 2.073,0.417 2.385,0.615 0.313,0.198 10 true *a 0.74,0.677 1.052,0.875 0.313,0.198 10 true SST

*a	Torque Wrench Fulcrum Length

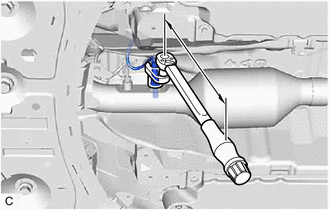

Using SST, install the heated oxygen sensor to the front exhaust pipe assembly (TWC: Rear Catalyst).

SST

09224-00012

Torque:

Specified tightening torque : 44 N*m (449 kgf*cm, 32 ft.*lbf)

NOTICE:

If the heated oxygen sensor has been struck or dropped, replace it.

HINT:

·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201906,999999,_V1,_080724,_0393249,RM100000001HWSK,

·

When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

37.7 N*m (384 kgf*cm, 28 ft.*lbf)

0.677,0.229 0.99,0.385 0.313,0.156 10 false *a 2.469,0.219 2.938,0.521 0.469,0.302 10 false *b 0.24,1.573 0.552,1.729 0.313,0.156 10 false *c 2.063,1.573 2.375,1.729 0.313,0.156 10 false *c

*a	Correct
*b	Incorrect
*c	Standard Position

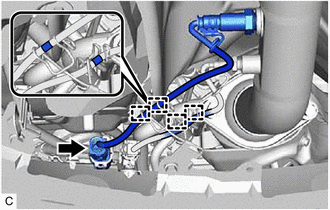

Install the wire harness clamp bracket to the heated oxygen sensor.

NOTICE:

Align the edge of the wire harness clamp bracket and heated oxygen sensor as shown in the illustration.

0.469,0.479 0.469,0.25 0.469,0.25 0.365,0.25 true 0.917,0.698 1.063,0.802 1.063,0.802 1.115,0.583 true 0.375,0.594 0.49,0.781 0.49,0.781 0.604,0.458 true 0.99,0.594 0.854,0.323 0.854,0.323 1.021,0.323 true 1.042,0.24 1.24,0.417 0.198,0.177 10 true *a 0.156,0.167 0.354,0.344 0.198,0.177 10 true *a 0.406,0.802 0.604,0.979 0.198,0.177 10 true *b 0.969,0.802 1.167,0.979 0.198,0.177 10 true *b

*a	Tube
*b	Wire Harness Clamp

Engage the 4 wire harness clamps so that the tube is positioned as shown in the illustration.
