8ZR-FXE ENGINE CONTROL CRANKSHAFT POSITION SENSOR REMOVAL
PROCEDURE
51443C

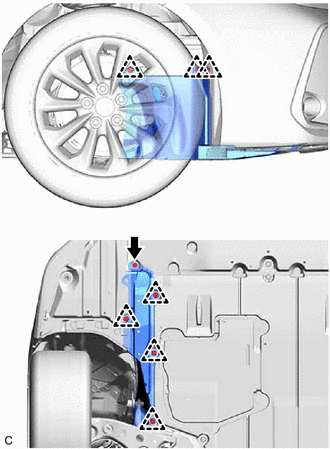

1.REMOVE REAR ENGINE UNDER COVER RH
a.
Remove the screw, 7 clips and rear engine under cover RH from the vehicle.
11401G

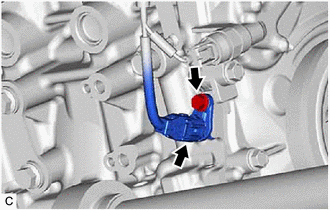

2.REMOVE CRANKSHAFT POSITION SENSOR
a.
Disconnect the crankshaft position sensor connector.
b.
Remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
- NOTICE:
-
If the crankshaft position sensor has been struck or dropped, replace it.
