8ZR-FXE FUEL  FUEL SYSTEM  PARTS LOCATION

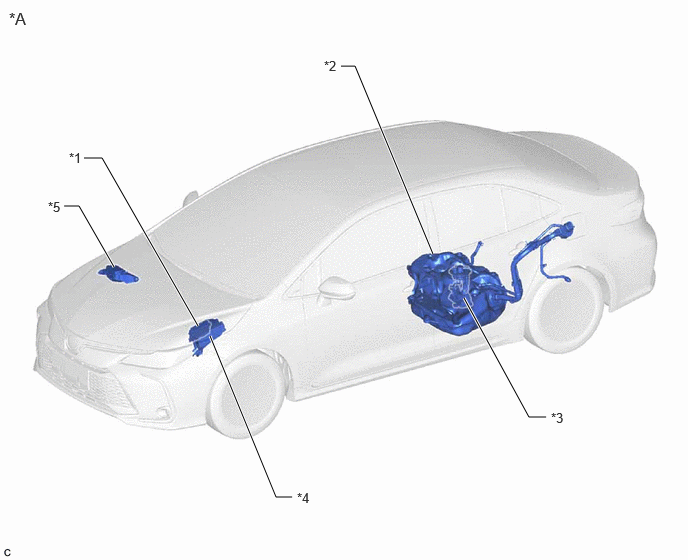

ILLUSTRATION

0.875,1.646 1.063,1.646 1.063,1.646 2.063,3.396 true 3.042,5.177 2.875,5.177 2.875,5.177 2.188,3.5 true 0.667,2.146 0.823,2.146 0.823,2.146 1.188,2.781 true 5.688,4.344 5.51,4.344 5.51,4.344 4.833,3.104 true 3.552,0.688 3.698,0.688 3.698,0.688 4.51,2.646 true 0.719,1.563 1.01,1.792 0.292,0.229 10 false *1 3.375,0.604 3.854,1.135 0.479,0.531 10 false *2 5.74,4.271 6.24,4.635 0.5,0.365 10 false *3 3.094,5.104 3.375,5.406 0.281,0.302 10 false *4 0.5,2.073 0.938,2.427 0.438,0.354 10 false *5 0.094,0.094 0.406,0.365 0.313,0.271 12 false *A

*A	for TFTM Made	-	-
*1	ECM	*2	FUEL TANK ASSEMBLY
*3	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY - FUEL PUMP - FUEL PRESSURE REGULATOR ASSEMBLY	*4	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI-MAIN RELAY - IG2 NO. 1 RELAY - INJ FUSE - ECU-IG2 NO. 1 FUSE
*5	NO. 2 RELAY BLOCK ASSEMBLY - C/OPN RELAY	-	-

ILLUSTRATION

0.646,2.104 0.885,2.104 0.885,2.104 1.167,2.802 true 1.01,1.688 1.333,1.688 1.333,1.688 2.073,3.417 true 3.49,0.885 3.729,0.885 3.729,0.885 4.531,2.646 true 2.188,3.531 2.823,4.958 2.823,4.958 3.094,4.958 true 4.844,3.177 5.354,4.24 5.354,4.24 5.604,4.24 true 3.146,4.865 3.458,5.063 0.313,0.198 10 false *4 0.49,2.021 0.802,2.219 0.313,0.198 10 false *5 3.333,0.802 3.646,1 0.313,0.198 10 false *2 5.656,4.146 5.969,4.344 0.313,0.198 10 false *3 0.854,1.604 1.167,1.802 0.313,0.198 10 false *1 0.094,0.073 0.458,0.323 0.365,0.25 12 false *A

*A	for GTMC Made	-	-
*1	ECM	*2	FUEL TANK ASSEMBLY
*3	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY - FUEL PUMP - FUEL PRESSURE REGULATOR ASSEMBLY	*4	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI-MAIN RELAY - IG2 NO. 1 RELAY - INJ FUSE - ECU-IG2 NO. 1 FUSE
*5	NO. 2 RELAY BLOCK ASSEMBLY - C/OPN RELAY	-	-

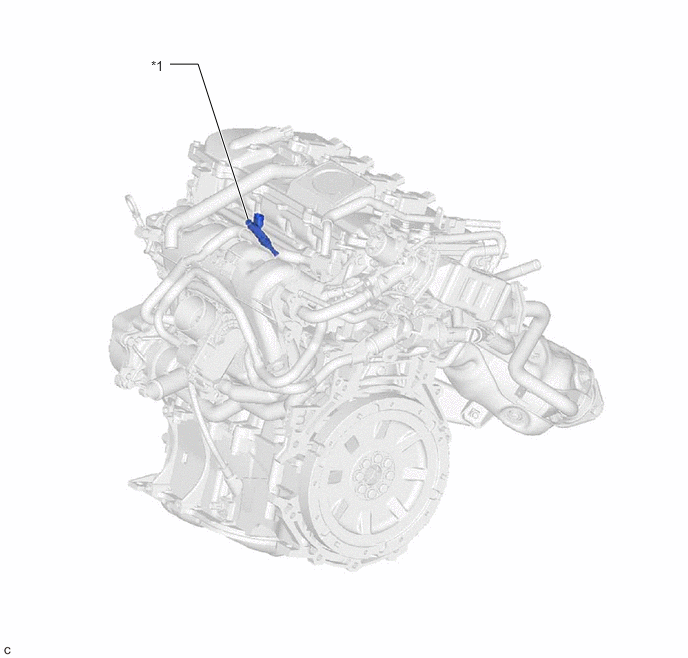

ILLUSTRATION

2.583,2.281 2.063,0.667 2.063,0.667 1.771,0.667 true 1.573,0.604 2.042,1 0.469,0.396 10 false *1

*1

FUEL INJECTOR ASSEMBLY

-

-
