RM3660EC _58 Vehicle Interior _080785 LIGHTING (INT) _0393087 PERSONAL LIGHT A

LIGHTING (INT) PERSONAL LIGHT REMOVAL

PROCEDURE

Hide Display 1.REMOVE MAP LIGHT ASSEMBLY (for Bulb Type)

a.

for Normal Roof:

i.

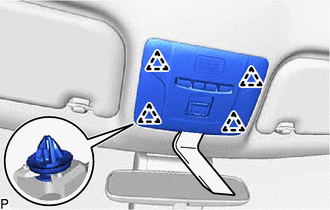

E419571

Using a moulding remover, disengage the 4 clips.

b.

for Moon Roof:

i.

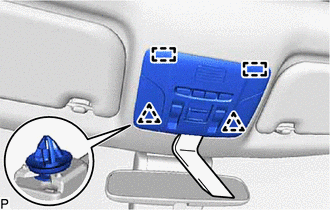

E419573

Using a moulding remover, disengage the 2 clips.

ii.

Disengage the 2 guides.

c.

Disconnect each connector to remove the map light assembly.

Hide Display 2.REMOVE MAP LIGHT ASSEMBLY (for LED Type)

a.

for Normal Roof:

i.

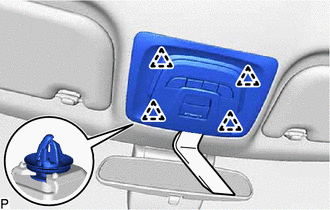

E488618

Using a moulding remover, disengage the 4 clips.

b.

for Moon Roof:

i.

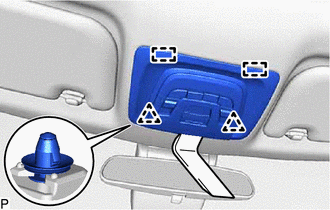

E488620

Using a moulding remover, disengage the 2 clips.

ii.

Disengage the 2 guides.

c.

Disconnect each connector to remove the map light assembly.
