RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392561 QUARTER GARNISH A

EXTERIOR PANELS / TRIM QUARTER GARNISH INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 62506C 1.INSTALL QUARTER PILLAR COVER SUB-ASSEMBLY (for COROLLA)

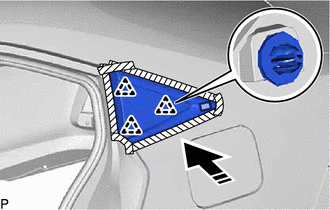

Install 3 new clips.

0,0 0,0 false

Install in this Direction

Engage the 3 clips to install the quarter pillar cover sub-assembly as shown in the illustration.

Hide Display 62506C 2.INSTALL QUARTER PILLAR COVER SUB-ASSEMBLY (for LEVIN)

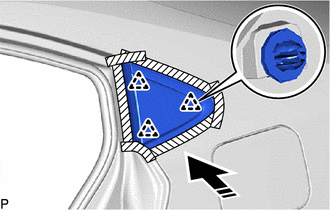

Install 3 new clips.

0,0 0,0 false

Install in this Direction

Engage the 3 clips to install the quarter pillar cover sub-assembly as shown in the illustration.

Hide Display 62506C 3.INSTALL QUARTER PILLAR COVER SUB-ASSEMBLY (for ALLION)

HINT:: When installing the quarter pillar cover sub-assembly, heat the vehicle body and quarter pillar cover sub-assembly using a heat light.

Heating Temperature
Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Quarter Pillar Cover Sub-assembly	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts, touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or quarter pillar cover sub-assembly excessively.

Clean the vehicle body surface.

Using a heat light, heat the vehicle body surface.

ii.

Remove any remaining double-sided tape from the vehicle body.

iii.

Wipe off any tape adhesive residue with cleaner.

Using a heat light, heat the vehicle body and a new quarter pillar cover sub-assembly.

Remove the release paper from the quarter pillar cover sub-assembly.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

2.5,1.229 2.156,1.115 true 2.521,1.156 2.76,1.354 0.24,0.198 10 true *a

*a	Double-sided Tape
	Install in this Direction

Engage the 3 clips to install the quarter pillar cover sub-assembly as shown in the illustration.

HINT:: Press the quarter pillar cover sub-assembly firmly to install it.

Hide Display 62506C 4.INSTALL QUARTER PILLAR COVER SUB-ASSEMBLY (for LEVIN GT)

HINT:: When installing the quarter pillar cover sub-assembly, heat the vehicle body and quarter pillar cover sub-assembly using a heat light.

Heating Temperature
Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Quarter Pillar Cover Sub-assembly	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts, touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or quarter pillar cover sub-assembly excessively.

Clean the vehicle body surface.

Using a heat light, heat the vehicle body surface.

ii.

Remove any remaining double-sided tape from the vehicle body.

iii.

Wipe off any tape adhesive residue with cleaner.

Using a heat light, heat the vehicle body and a new quarter pillar cover sub-assembly.

Remove the release paper from the quarter pillar cover sub-assembly.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

2.5,1.229 2.156,1.115 true 2.521,1.156 2.76,1.354 0.24,0.198 10 true *a

*a	Double-sided Tape
	Install in this Direction

Engage the 3 clips to install the quarter pillar cover sub-assembly as shown in the illustration.

HINT:: Press the quarter pillar cover sub-assembly firmly to install it.
