8ZR-FXE EMISSION CONTROL  FUEL TANK CAP  INSPECTION

2.417,1.26 2.719,1.604 2.719,1.604 2.875,1.604 false 2.969,1.51 3.281,1.708 0.313,0.198 10 false *a

*a

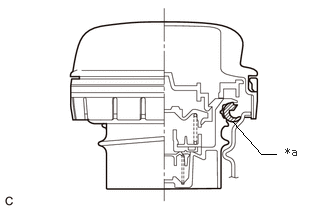

Gasket

Visually check that the fuel tank cap assembly and gasket are not deformed or damaged.

If the result is not as specified, replace the fuel tank cap assembly.

0.625,1.573 1.021,1.573 true 0.469,1.49 0.688,1.698 0.219,0.208 10 false *a

*a

ID Mark

Confirm that ID mark N is printed on the fuel tank cap assembly.

CAUTION:

Make sure to use a fuel tank cap assembly that has the same ID mark, or a malfunction may occur in the fuel system.
