RM3660EC _51 Engine / Hybrid System _080789 8ZR-FXE EMISSION CONTROL _0392060 CANISTER A

8ZR-FXE EMISSION CONTROL  CANISTER  INSTALLATION


PROCEDURE

Hide 77740 1.INSTALL CANISTER (CHARCOAL CANISTER ASSEMBLY)

a.

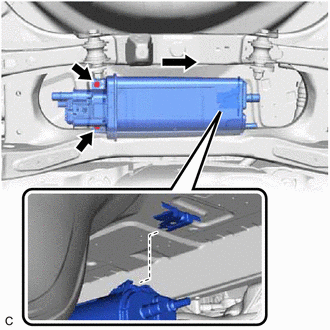

A462755

Install the canister (charcoal canister assembly) to the vehicle body as shown in the illustration.


b.

Install the 2 bolts.

Torque:
8.0 N*m (82 kgf*cm, 71 in.*lbf)


c.

Connect the purge line hose to the canister (charcoal canister assembly) and slide the clip to secure it.


d.

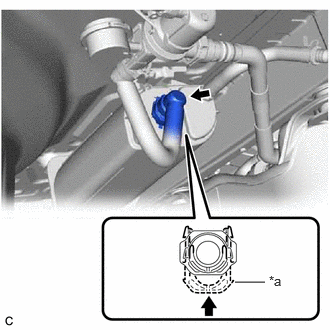

A462756C01
2.448,2.938 2.76,2.938 false 2.802,2.844 3.271,3.229 0.469,0.385 10 false *a
*a Retainer
V100135

Push in


Push the fuel tank vent hose onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.

NOTICE:
·

Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.

·

After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling on the tube connector.




e.

Connect the canister (charcoal canister assembly) connector.


f.

Push in the fuel tank vent hose sub-assembly to the pipe (canister (charcoal canister assembly)) until the fuel tank vent hose sub-assembly makes a "click" sound.

NOTICE:
·

Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.

·

After connecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly is securely connected by pulling on the tube connector.




Hide 48805 2.INSTALL REAR STABILIZER BAR SUB-ASSEMBLY

a.

Install the rear stabilizer bar sub-assembly to the rear suspension member sub-assembly with the 4 bolts.

Torque:
78 N*m (795 kgf*cm, 58 ft.*lbf)
