RM3660EC _51 Engine / Hybrid System _080789 8ZR-FXE EMISSION CONTROL _0392060 CANISTER A

8ZR-FXE EMISSION CONTROL CANISTER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during canister (charcoal canister assembly) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Gas leak from exhaust system is repaired	Inspection After Repair	· Poor idle, etc. · Engine start function, etc.	(202007,202304,_51,_080778,_0393982,RM100000001RNF2,202304,999999,_51,_080778,_0393982,RM100000002BDLI,)

PROCEDURE

Hide Display 17430 1.REMOVE TAIL EXHAUST PIPE ASSEMBLY

Click hereEngine / Hybrid System>8ZR-FXE (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL202007,202304,_51,_080790,_0392074,RM100000001RN8I_01_0005,202304,999999,_51,_080790,_0392074,RM100000002B0QY_01_0005,

Hide Display 57628E 2.REMOVE REAR FLOOR SIDE MEMBER COVER LH

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL201906,202304,_53,_080787,_0392571,RM100000001HRKR_01_0017,202304,202307,_53,_080787,_0392571,RM100000002BDZZ_01_0017,202307,999999,_53,_080787,_0392571,RM100000002CWHJ_01_0017,

Hide Display 57627G 3.REMOVE REAR FLOOR SIDE MEMBER COVER RH

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL201906,202304,_53,_080787,_0392571,RM100000001HRKR_01_0016,202304,202307,_53,_080787,_0392571,RM100000002BDZZ_01_0016,202307,999999,_53,_080787,_0392571,RM100000002CWHJ_01_0016,

Hide Display 48805 4.SEPARATE REAR STABILIZER BAR SUB-ASSEMBLY

Remove the 4 bolts and separate the rear stabilizer bar sub-assembly from the rear suspension member sub-assembly.

Hide Display 77740 5.REMOVE CANISTER (CHARCOAL CANISTER ASSEMBLY)

2.104,2.031 2.271,2.031 2.271,2.031 2.323,2.292 true 2.031,3.125 2.031,2.896 false 1.458,2.219 1.625,2.219 1.625,2.219 1.75,2.344 true 2.052,1.188 2.354,1.719 2.354,1.719 2.583,1.719 true 2.646,1.615 2.885,1.875 0.24,0.26 10 true *1 1.313,2.135 1.531,2.344 0.219,0.208 10 false *2 1.979,3.135 2.229,3.333 0.25,0.198 10 false *a 1.948,1.938 2.25,2.219 0.302,0.281 10 false *b

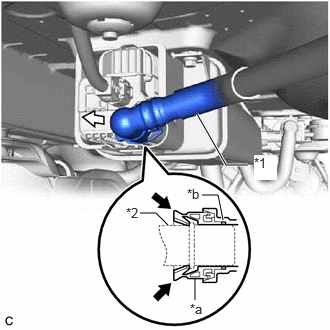

*1	Fuel Tank Vent Hose Sub-assembly
*2	Pipe (Canister (Charcoal Canister Assembly))
*a	Tube Connector
*b	O-ring
	Pinch
	Pull off

Disconnect the fuel tank vent hose sub-assembly from the canister (charcoal canister assembly).

NOTICE:: ·

Remove any dirt or foreign matter on the tube connector before performing this work.

·

Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe.

·

Perform this work by hand. Do not use any tools.

·

Do not forcibly bend, twist or turn the air line tube.

·

Protect the disconnected parts by covering them with plastic bags after disconnecting the air line tube.

·

If the tube connector and pipe are stuck, push and pull to release them.

Push the fuel tank vent hose sub-assembly firmly toward the canister (charcoal canister assembly).

ii.

Pinch the tube connector as shown in the illustration.

iii.

Pull off the fuel tank vent hose sub-assembly from the pipe (canister (charcoal canister assembly)).

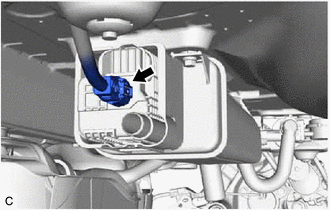

Disconnect the canister (charcoal canister assembly) connector.

Disconnect the fuel tank vent hose from the canister (charcoal canister assembly).

1.823,0.938 2.365,1.198 2.365,1.198 2.531,1.198 true 5.323,1.052 5.531,0.427 5.531,0.427 5.698,0.427 false 4.125,0.635 4.344,0.635 4.344,0.635 4.427,1.104 false 4.271,2.417 4.49,2.417 4.49,2.417 4.688,1.833 true 5.104,1.677 5.333,2.198 5.333,2.198 5.5,2.198 false 1.344,2.281 1.5,2.281 1.5,2.281 1.708,1.927 true 2.135,2.302 2.438,2.302 false 2.646,1.104 2.865,1.281 0.219,0.177 10 true *1 3.938,0.563 4.333,0.885 0.396,0.323 10 false *2 4.125,2.344 4.469,2.563 0.344,0.219 10 false *a 1.177,2.208 1.563,2.469 0.385,0.26 10 false *b 5.76,0.344 6.094,0.635 0.333,0.292 10 false *c 5.552,2.115 5.938,2.333 0.385,0.219 10 false *d 2.49,2.229 2.833,2.448 0.344,0.219 10 false *a

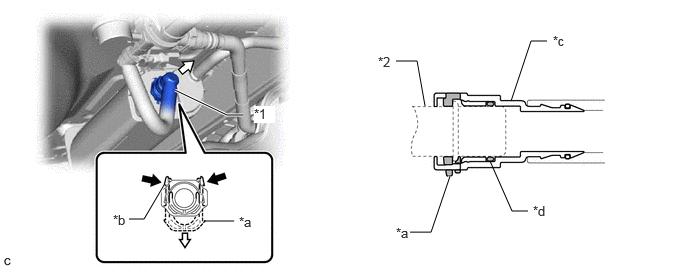

*1	Fuel Tank Vent Hose	*2	Pipe (Canister (Charcoal Canister Assembly))
*a	Retainer	*b	Tab
*c	Tube Connector	*d	O-ring
	Pinch		Pull

NOTICE:: ·

Remove any dirt or foreign matter on the tube connector before performing this work.

·

Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe.

·

Perform this work by hand. Do not use any tools.

·

Do not forcibly bend, twist or turn the fuel tank vent hose.

·

Protect the disconnected parts by covering them with plastic bags after disconnecting the fuel tank vent hose.

·

If the tube connector and pipe are stuck, push and pull to release them.

HINT:: Do not remove the retainer.

Pinch the tabs of the retainer to disengage the lock claws and pull it down.

ii.

Pull off the fuel tank vent hose.

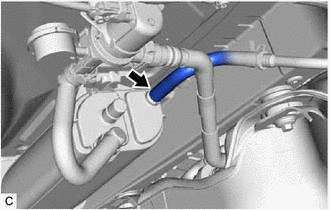

Slide the clip and disconnect the purge line hose from the canister (charcoal canister assembly).

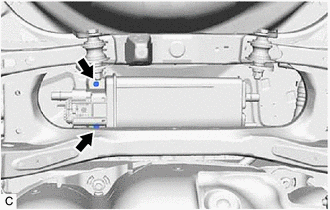

Remove the 2 bolts.

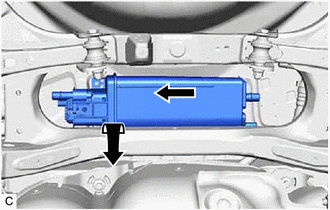

Remove the canister (charcoal canister assembly) from vehicle body as shown in the illustration.
