8ZR-FXE FUEL  FUEL SENDER GAUGE ASSEMBLY  INSPECTION

0.104,0.073 0.417,0.229 0.313,0.156 10 false *a 1.667,2.458 1.979,2.615 0.313,0.156 10 false *b

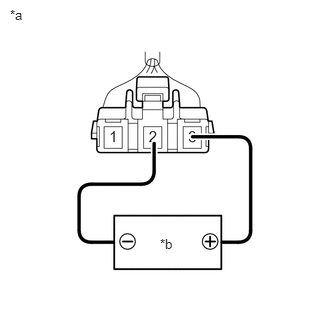

*a	Component without harness connected (Fuel Sender Gauge Assembly)
*b	Voltage Applied between Terminals

Apply 5 V between terminals 2 and 3.

NOTICE:

·

Be careful when connecting the leads, as the fuel sender gauge assembly may be damaged if the leads are connected to the wrong terminals.

·

Do not apply more than 6 V to terminals 2 or 3.

HINT:

If a stable power supply is not available, connect 4 nickel-metal hydride batteries (1.2 V each) or equivalent in series.

0.521,0.083 1.99,1.365 1.469,1.281 1.854,2.677 2.24,2.677 true 2.302,4.438 2.688,4.438 true 0.604,0.146 0.917,0.344 0.313,0.198 10 false *a 2.385,2.615 2.698,2.813 0.313,0.198 10 false F 2.802,4.375 3.115,4.573 0.313,0.198 10 false E

*a	Component without harness connected (Fuel Sender Gauge Assembly)

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Float Level	Specified Condition
1 - 2	F	4.255 to 4.605 V*
	Between F and E	0.345 to 4.605 V* (Gradually changes)
	E	0.345 to 0.695 V*

*: The output voltage changes depending on the voltage applied to the terminals.

Output voltage (F) = (0.851 x Voltage applied to terminals) to (0.921 x Voltage applied to terminals)

Output voltage (E) = (0.069 x Voltage applied to terminals) to (0.139 x Voltage applied to terminals)

If the result is not as specified, replace the fuel sender gauge assembly.
