RM3660EC _51 Engine / Hybrid System _080749 8ZR-FXE FUEL _0393857 FUEL PUMP A

8ZR-FXE FUEL  FUEL PUMP  DISASSEMBLY


CAUTION / NOTICE / HINT

NOTICE:

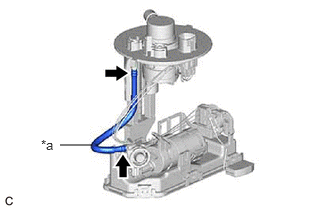

A446337C01
0.625,1.51 0.958,1.51 false 0.427,1.427 0.74,1.625 0.313,0.198 10 false *a
*a Tube


Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube with pump and gauge assembly. Doing so will cause reassembly of the fuel suction tube with pump and gauge assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.


PROCEDURE

Hide 23221 2.REMOVE FUEL PUMP

a.

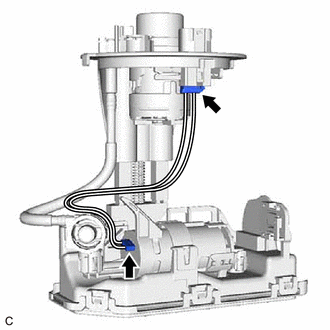

A446351

Disconnect the 2 fuel pump harness connectors.


b.

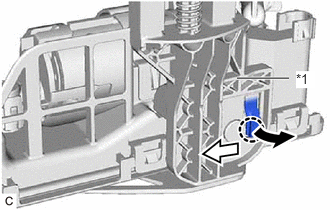

A446352C01
2.469,0.813 3.01,0.813 true 3.083,0.74 3.281,0.917 0.198,0.177 10 true *1
*1 Fuel Suction Plate Sub-assembly
V100135

Pull
V100136

Slide


Disengage the claw and slide the fuel suction plate sub-assembly and then separate it from the fuel sub-tank sub-assembly.


c.

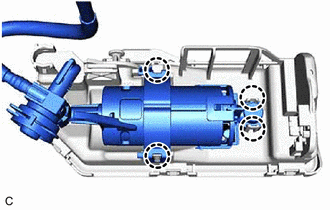

A446353

Disengage the 4 claws and remove the fuel suction plate sub-assembly from the fuel sub-tank sub-assembly.


d.

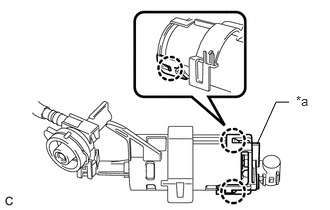

A432194C04
2.677,1.5 2.875,1.063 2.875,1.063 3.01,1.063 false 3.083,0.969 3.344,1.24 0.26,0.271 10 false *a
*a No. 1 Cap


Disengage the 3 claws and remove the No. 1 cap from the fuel suction plate sub-assembly.


e.

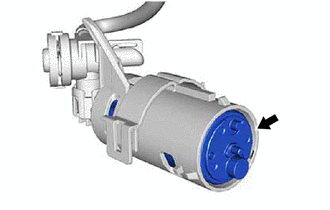

A446354

Remove the fuel pump from the fuel suction plate sub-assembly.


f.
A438380C01
1.188,0.208 1.344,0.208 1.344,0.208 1.594,0.406 true 1.083,0.521 1.583,0.521 true 0.979,0.146 1.292,0.302 0.313,0.156 10 false *1 0.865,0.458 1.177,0.615 0.313,0.156 10 false *2
*1 O-ring
*2 Fuel Pump Spacer


Remove the O-ring and fuel pump spacer from the fuel pump.
