LIGHTING (EXT)  FOG LIGHT ASSEMBLY  INSPECTION


PROCEDURE

Hide 81220 1.INSPECT FOG LIGHT ASSEMBLY LH

E399393C16
2.083,1.917 1.917,1.167 true 1.333,1.917 1.5,1.167 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 2.063,1.927 2.219,2.125 0.156,0.198 10 false B 1.302,1.917 1.458,2.115 0.156,0.198 10 false E

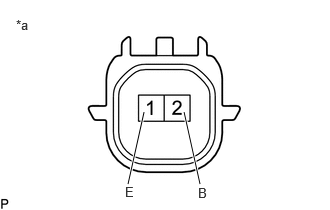

*a Component without harness connected
(Fog Light Assembly LH)


a.

Illumination Inspection

i.

Apply auxiliary battery voltage to the fog light assembly LH and check that the light illuminates.

OK:
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 2 (B)
Auxiliary battery negative (-) → Terminal 1 (E) 		Fog light illuminates


If the result is not as specified, replace the fog light assembly LH.



Hide 81210A 2.INSPECT FOG LIGHT ASSEMBLY RH

E399393C16
2.083,1.917 1.917,1.167 true 1.333,1.917 1.5,1.167 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 2.063,1.927 2.219,2.125 0.156,0.198 10 false B 1.302,1.917 1.458,2.115 0.156,0.198 10 false E
*a Component without harness connected
(Fog Light Assembly RH)


a.

Illumination Inspection

i.

Apply auxiliary battery voltage to the fog light assembly RH and check that the light illuminates.

OK:
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 2 (B)
Auxiliary battery negative (-) → Terminal 1 (E) 		Fog light illuminates


If the result is not as specified, replace the fog light assembly RH.
