MAINTENANCE  BACK-UP LIGHT BULB  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81550N 1.INSTALL BACK-UP LIGHT BULB

a.

Install the back-up light bulb to the rear light socket and wire.


b.

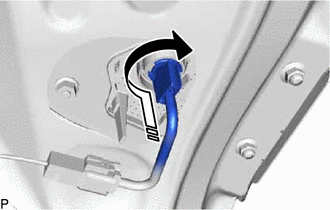

E419598C01
0,0 0,0 false
V113147

Install in this Direction


Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to install them as a unit.
