MAINTENANCE BACK-UP LIGHT BULB REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 64719A 1.REMOVE LUGGAGE COMPARTMENT DOOR COVER

Hide Display 81550N 2.REMOVE BACK-UP LIGHT BULB

0,0 0,0 false

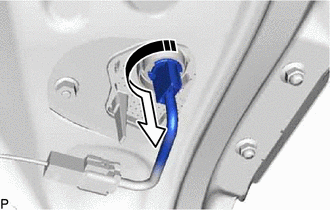

Disconnect in this Direction

Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to disconnect them as a unit.

Remove the back-up light bulb from the rear light socket and wire.
