RM3660EC _58 Vehicle Interior _080785 LIGHTING (INT) _0393093 FRONT DOOR COURTESY SWITCH A

LIGHTING (INT) FRONT DOOR COURTESY SWITCH REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 73350C 1.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)

for Fixed Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD_01_0021,

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0024,

Hide Display 2.REMOVE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

for Fixed Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD_01_0022,

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0022,

Hide Display 72693 3.REMOVE REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

for Fixed Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD_01_0024,

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0001,

Hide Display 67914 4.REMOVE FRONT DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0001,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0001,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0001,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0001,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0001,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0001,

Hide Display 62312B 5.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>REMOVAL201906,202101,_58,_080748,_0391778,RM100000001HMCA_02_0067,202101,202104,_58,_080748,_0391778,RM100000001TPZ6_02_0067,202104,202107,_58,_080748,_0391778,RM100000001WK0U_02_0067,202107,202205,_58,_080748,_0391778,RM100000001XPZD_02_0067,202205,202304,_58,_080748,_0391778,RM1000000022ZXC_02_0067,202304,202307,_58,_080748,_0391778,RM100000002BFCT_02_0067,202307,202406,_58,_080748,_0391778,RM100000002D1KD_02_0067,202406,999999,_58,_080748,_0391778,RM100000002N5WG_02_0067,

Hide Display 67918A 6.REMOVE REAR DOOR SCUFF PLATE (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0002,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0002,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0002,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0002,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0002,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0002,

Hide Display 67918A 7.REMOVE REAR DOOR SCUFF PLATE (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0308,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0308,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0308,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0308,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0308,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0308,

Hide Display 62332A 8.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>REMOVAL201906,202101,_58,_080748,_0391778,RM100000001HMCA_02_0069,202101,202104,_58,_080748,_0391778,RM100000001TPZ6_02_0069,202104,202107,_58,_080748,_0391778,RM100000001WK0U_02_0069,202107,202205,_58,_080748,_0391778,RM100000001XPZD_02_0069,202205,202304,_58,_080748,_0391778,RM1000000022ZXC_02_0069,202304,202307,_58,_080748,_0391778,RM100000002BFCT_02_0069,202307,202406,_58,_080748,_0391778,RM100000002D1KD_02_0069,202406,999999,_58,_080748,_0391778,RM100000002N5WG_02_0069,

Hide Display 73233 9.REMOVE LAP BELT OUTER ANCHOR COVER

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>REMOVAL201906,202101,_58,_080748,_0391778,RM100000001HMCA_02_0051,202101,202104,_58,_080748,_0391778,RM100000001TPZ6_02_0051,202104,202107,_58,_080748,_0391778,RM100000001WK0U_02_0051,202107,202205,_58,_080748,_0391778,RM100000001XPZD_02_0051,202205,202304,_58,_080748,_0391778,RM1000000022ZXC_02_0051,202304,202307,_58,_080748,_0391778,RM100000002BFCT_02_0051,202307,202406,_58,_080748,_0391778,RM100000002D1KD_02_0051,202406,999999,_58,_080748,_0391778,RM100000002N5WG_02_0051,

Hide Display 73220 10.DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>REMOVAL201906,202101,_58,_080748,_0391778,RM100000001HMCA_02_0037,202101,202104,_58,_080748,_0391778,RM100000001TPZ6_02_0037,202104,202107,_58,_080748,_0391778,RM100000001WK0U_02_0037,202107,202205,_58,_080748,_0391778,RM100000001XPZD_02_0037,202205,202304,_58,_080748,_0391778,RM1000000022ZXC_02_0037,202304,202307,_58,_080748,_0391778,RM100000002BFCT_02_0037,202307,202406,_58,_080748,_0391778,RM100000002D1KD_02_0037,202406,999999,_58,_080748,_0391778,RM100000002N5WG_02_0037,

Hide Display 62414A 11.REMOVE CENTER PILLAR LOWER GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0004,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0004,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0004,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0004,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0004,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0004,

Hide Display 84233 12.REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

a.

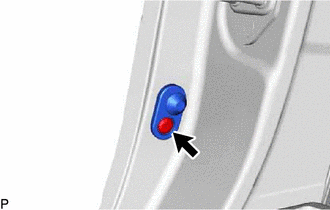

E399352

Using a T30 "TORX" socket wrench, remove the screw.

b.

Disconnect the connector to remove the front door courtesy light switch assembly.
