FRONT SUSPENSION  FRONT LOWER BALL JOINT  ON-VEHICLE INSPECTION


PROCEDURE

Hide 43340A 1.INSPECT FRONT LOWER BALL JOINT ASSEMBLY

a.
C398494

Check for looseness.

i.

Lift up the vehicle.


ii.

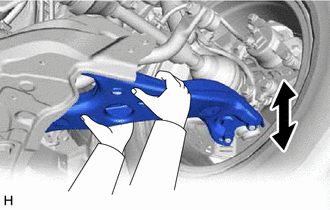

Move the front lower No. 1 suspension arm sub-assembly up and down by hand with a force of 294 N (30 kgf) or more to check that there is no looseness at the front lower ball joint assembly.

HINT:

If the front lower ball joint assembly is loose, replace it with a new one.
