8ZR-FXE COOLING  RELAY  ON-VEHICLE INSPECTION


PROCEDURE

Hide 85927 1.INSPECT FAN NO. 1 RELAY

a.
A252086E01
1.823,0.188 1.938,0.188 1.938,0.188 2.031,0.563 false 2.823,0.188 2.708,0.188 2.708,0.188 2.625,0.563 false 2.542,1.104 2.938,1.104 false 2.542,1.594 2.948,1.594 false 2.979,1.51 3.125,1.688 0.146,0.177 10 false 3 0.198,0.74 0.344,0.917 0.146,0.177 10 false 3 2.875,0.104 3.021,0.281 0.146,0.177 10 false 2 1.229,1.281 1.375,1.458 0.146,0.177 10 false 2 0.198,1.271 0.344,1.448 0.146,0.177 10 false 1 1.729,0.094 1.875,0.271 0.146,0.177 10 false 1 2.969,1.01 3.115,1.188 0.146,0.177 10 false 5 1.229,0.75 1.375,0.927 0.146,0.177 10 false 5

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3 - 5 Auxiliary battery voltage not applied between terminals 1 and 2 10 kΩ or higher
3 - 5 Auxiliary battery voltage applied between terminals 1 and 2 Below 1 Ω


If the result is not as specified, replace the FAN NO. 1 relay.


Hide 85927A 2.INSPECT FAN NO. 2 RELAY

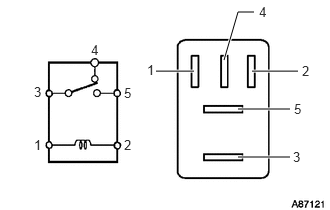

a.
A087121N13
2.479,1.135 3.021,1.135 true 2.479,1.635 3.021,1.635 true 1.625,0.74 2.021,0.74 true 2.625,0.74 3.104,0.74 true 2.333,0.625 2.479,0.125 2.479,0.125 2.646,0.125 true 1.292,0.885 1.448,1.083 0.156,0.198 10 false 5 0.948,0.438 1.104,0.635 0.156,0.198 10 false 4 0.354,0.875 0.51,1.073 0.156,0.198 10 false 3 0.354,1.427 0.51,1.625 0.156,0.198 10 false 1 1.292,1.427 1.448,1.625 0.156,0.198 10 false 2 1.531,0.646 1.688,0.844 0.156,0.198 10 false 1 2.698,0.042 2.854,0.24 0.156,0.198 10 false 4 3.063,1.052 3.219,1.25 0.156,0.198 10 false 5 3.052,1.552 3.208,1.75 0.156,0.198 10 false 3 3.146,0.656 3.302,0.854 0.156,0.198 10 false 2

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3 - 4 Auxiliary battery voltage not applied between terminals 1 and 2 Below 1 Ω
3 - 4 Auxiliary battery voltage applied between terminals 1 and 2 10 kΩ or higher
3 - 5 Auxiliary battery voltage not applied between terminals 1 and 2 10 kΩ or higher
3 - 5 Auxiliary battery voltage applied between terminals 1 and 2 Below 1 Ω


If the result is not as specified, replace the FAN NO. 2 relay.


Hide 85927B 3.INSPECT FAN NO. 3 RELAY

a.
A252086E01
1.823,0.188 1.938,0.188 1.938,0.188 2.031,0.563 false 2.823,0.188 2.708,0.188 2.708,0.188 2.625,0.563 false 2.542,1.104 2.938,1.104 false 2.542,1.594 2.948,1.594 false 2.979,1.51 3.125,1.688 0.146,0.177 10 false 3 0.198,0.74 0.344,0.917 0.146,0.177 10 false 3 2.875,0.104 3.021,0.281 0.146,0.177 10 false 2 1.229,1.281 1.375,1.458 0.146,0.177 10 false 2 0.198,1.271 0.344,1.448 0.146,0.177 10 false 1 1.729,0.094 1.875,0.271 0.146,0.177 10 false 1 2.969,1.01 3.115,1.188 0.146,0.177 10 false 5 1.229,0.75 1.375,0.927 0.146,0.177 10 false 5

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3 - 5 Auxiliary battery voltage not applied between terminals 1 and 2 10 kΩ or higher
3 - 5 Auxiliary battery voltage applied between terminals 1 and 2 Below 1 Ω


If the result is not as specified, replace the FAN NO. 3 relay.
