MAINTENANCE  8ZR-FXE OIL AND OIL FILTER  COMPONENTS

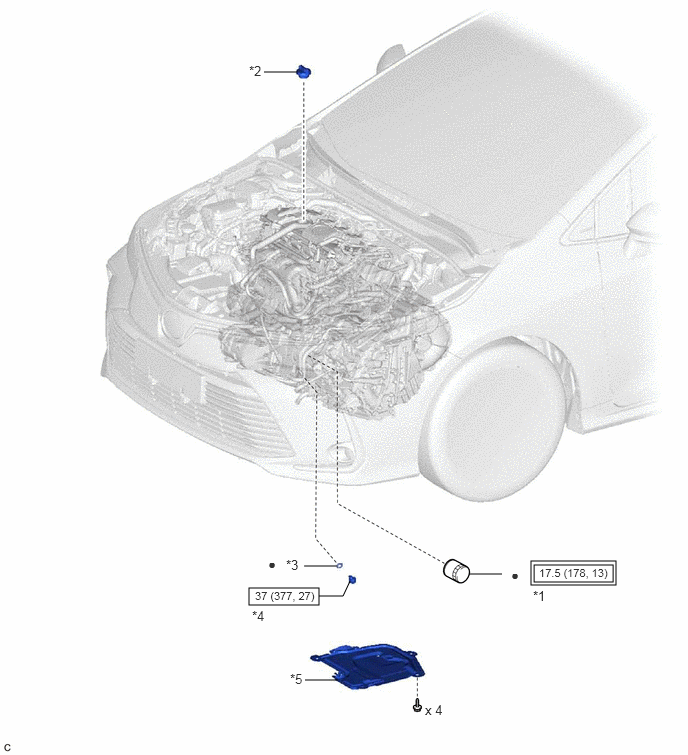

ILLUSTRATION

2.594,6.125 3.323,6.302 0.729,0.177 5.563,5.885 6.385,6.063 0.823,0.177 5.531,5.844 6.417,6.094 0.885,0.25 2.75,0.75 3.094,0.75 false 3.167,5.896 3.51,5.896 false 3.177,7.083 3.521,7.083 false 4.885,5.979 5.229,5.979 false 3.323,6.208 3.573,6.208 3.573,6.208 3.646,6.052 false 5.552,6.125 5.865,6.281 0.313,0.156 10 false *1 2.594,0.656 2.906,0.813 0.313,0.156 10 false *2 2.979,5.802 3.292,5.958 0.313,0.156 10 false *3 2.625,6.333 2.938,6.49 0.313,0.156 10 false *4 3.021,6.99 3.333,7.146 0.313,0.156 10 false *5 5.323,5.906 5.479,6.063 0.156,0.156 10 false ● 2.792,5.792 2.948,5.948 0.156,0.156 10 false ● 4.427,7.313 4.75,7.51 0.323,0.198 10 false x 4 5.615,5.896 6.625,6.125 1.01,0.229 8 false 17.5 (178, 13) 2.656,6.135 3.406,6.333 0.75,0.198 8 false 37 (377, 27)

*1	OIL FILTER SUB-ASSEMBLY	*2	OIL FILLER CAP SUB-ASSEMBLY
*3	GASKET	*4	OIL PAN DRAIN PLUG
*5	CENTER NO. 4 ENGINE UNDER COVER	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)		N*m (kgf*cm, ft.*lbf): Specified torque
●	Non-reusable part	-	-
