8ZR-FXE LUBRICATION  OIL LEVEL SENSOR  INSPECTION

2.354,0.479 2.104,0.479 2.104,0.479 1.698,1.104 true 1.906,2.167 2.042,2.167 2.042,2.167 2.167,2.552 true 1.375,3.01 1.563,3.292 1.563,3.292 1.688,3.292 true 0.083,0.063 0.385,0.271 0.302,0.208 10 false *a 2.438,0.385 2.698,0.604 0.26,0.219 10 false 1 0.896,2.083 1.219,2.281 0.323,0.198 10 false *c 2.448,2.083 2.802,2.302 0.354,0.219 10 false *d 1.698,2.063 2,2.26 0.302,0.198 10 false *b 1.781,3.198 2,3.375 0.219,0.177 10 false *b

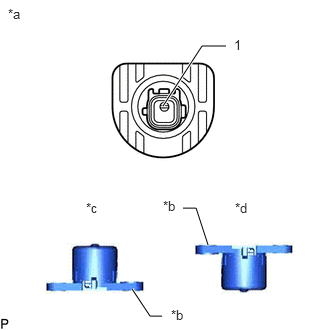

*a	Component without harness connected (Engine Oil Level Sensor)
*b	Engine Oil Level Sensor Body
*c	ON
*d	OFF

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - Engine oil level sensor body	ON	Below 1 Ω
	OFF	10 kΩ or higher

If the result is not as specified, replace the engine oil level sensor.
