RM3660EC _51 Engine / Hybrid System _080755 8ZR-FXE LUBRICATION _0392357 OIL LEVEL SENSOR A

8ZR-FXE LUBRICATION OIL LEVEL SENSOR REMOVAL

PROCEDURE

Hide Display 51410 1.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202104,_51,_080726,_0391619,RM100000001HLG9_01_0301,202104,202304,_51,_080726,_0391619,RM100000001WER4_01_0301,202304,202307,_51,_080726,_0391619,RM100000002B5YK_01_0301,202307,999999,_51,_080726,_0391619,RM100000002CWTY_01_0301,

Hide Display 2.DRAIN ENGINE OIL

Click hereGeneral>MAINTENANCE>8ZR-FXE OIL AND OIL FILTER>REPLACEMENT201906,202007,_V1,_080956,_0392374,RM100000001HQ90_02_0018,202007,202101,_V1,_080956,_0392374,RM100000001RHBJ_02_0018,202101,202304,_V1,_080956,_0392374,RM100000001TTC3_02_0018,202304,999999,_V1,_080956,_0392374,RM100000002BETD_02_0018,

Hide Display 12102A 3.REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE MECHANICAL)>ENGINE UNIT>DISASSEMBLY201906,999999,_51,_080726,_0391620,RM100000001HLGF_02_0185,

Hide Display 89491 4.REMOVE ENGINE OIL LEVEL SENSOR

a.

Disconnect the engine oil level sensor connector.

b.

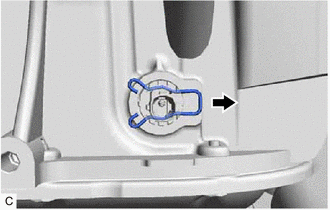

A373677

Remove the clip from the engine oil level sensor.

c.

A373678

Remove the 2 bolts and engine oil level sensor.
