8ZR-FXE LUBRICATION  OIL PRESSURE SWITCH  INSTALLATION


PROCEDURE

Hide 83530 1.INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY

a.

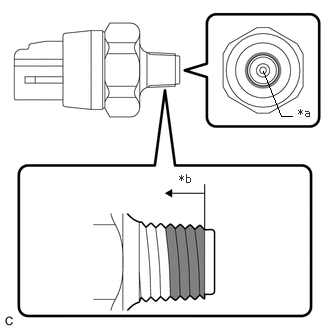

A433160C01
2.74,0.74 2.927,1.208 2.927,1.208 3.042,1.208 false 3.104,1.104 3.354,1.313 0.25,0.208 10 false *a 1.865,1.792 2.177,1.948 0.313,0.156 10 false *b
*a Oil Inlet Port
*b 3 Threads or More
V100144

Adhesive Application Area


Apply adhesive to the area shown in the illustration.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent


NOTICE:
·

Do not apply adhesive to the oil inlet port of the engine oil pressure switch assembly.

·

Apply the adhesive to the first 3 threads or more of the engine oil pressure switch assembly.

·

Apply adhesive to the entire circumference of the thread.

·

Install the engine oil pressure switch assembly within 3 minutes of applying adhesive.




b.

Using a 24 mm deep socket wrench, install the engine oil pressure switch assembly.

Torque:
15 N*m (153 kgf*cm, 11 ft.*lbf)

NOTICE:

Do not start the engine for at least 1 hour after installation.



c.

Connect the engine oil pressure switch assembly connector.
