MAINTENANCE 8ZR-FXE SPARK PLUG REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during spark plug removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of ignition coil assembly · Replacement of spark plug	Inspection After Repair	· Poor idle, etc. · Engine start function, etc.	(201906,202007,_51,_080778,_0393982,RM100000001I25B,202007,202304,_51,_080778,_0393982,RM100000001RNF2,202304,999999,_51,_080778,_0393982,RM100000002BDLI,)

PROCEDURE

Hide Display 19500 1.REMOVE IGNITION COIL ASSEMBLY

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>IGNITION COIL AND SPARK PLUG>REMOVAL201906,202304,_51,_080778,_0392138,RM100000001HO8F_01_0003,202304,999999,_51,_080778,_0392138,RM10000000295TQ_01_0003,

Hide Display 19100P 2.REMOVE SPARK PLUG

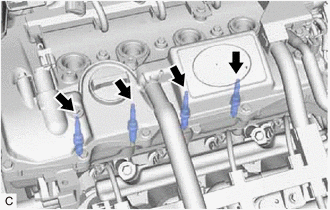

Remove the 4 spark plugs from the cylinder head sub-assembly.

NOTICE:: If a spark plug has been struck or dropped, replace it.

HINT:: Arrange the removed parts in the correct order.
