8ZR-FXE ENGINE CONTROL KNOCK SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during knock control sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of throttle body assembly · Cleaning the deposits from the throttle body assembly · Replacement of knock control sensor	Inspection After Repair	· Poor idle, etc. · Engine start function, etc.	(201906,202007,_51,_080778,_0393982,RM100000001I25B,202007,202304,_51,_080778,_0393982,RM100000001RNF2,202304,999999,_51,_080778,_0393982,RM100000002BDLI,)

PROCEDURE

Hide Display 17111 1.REMOVE INTAKE MANIFOLD

Click hereEngine / Hybrid System>8ZR-FXE (INTAKE / EXHAUST)>INTAKE MANIFOLD>REMOVAL201906,202304,_51,_080790,_0392072,RM100000001HNW0,202304,999999,_51,_080790,_0392072,RM100000002B0QN,

Hide Display 89615 2.REMOVE KNOCK CONTROL SENSOR

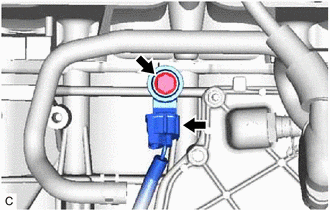

Disconnect the knock control sensor connector.

Remove the bolt and knock control sensor from the cylinder block sub-assembly.

NOTICE:: If the knock control sensor has been struck or dropped, replace it.
