8ZR-FXE ENGINE CONTROL  THROTTLE BODY  INSPECTION

2.042,1.677 2.188,1.323 false 2.615,1.677 2.5,1.333 false 0.26,0.229 0.573,0.427 0.313,0.198 10 *a 2.563,1.719 2.875,1.917 0.313,0.198 10 M- 1.927,1.719 2.24,1.917 0.313,0.198 10 M+

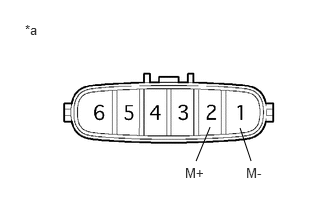

*a	Component without harness connected (Throttle Body Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 (M-) - 2 (M+)	20°C (68°F)	0.3 to 100 Ω

If the result is not as specified, replace the throttle body assembly.
