8ZR-FXE ENGINE CONTROL  CAMSHAFT OIL CONTROL VALVE  REMOVAL


PROCEDURE

Hide 11101J 1.REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

a.
A440947

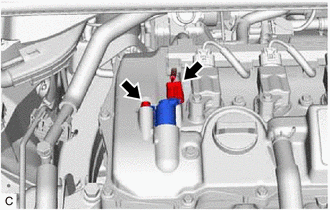

Disconnect the camshaft timing oil control valve assembly connector.


b.

Remove the bolt and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly.

NOTICE:
·

Do not allow foreign matter to contact the oil seal surface of the camshaft timing oil control valve assembly (connecting surface with the cylinder head cover sub-assembly).

·

If the camshaft timing oil control valve assembly has been struck or dropped, replace it.




c.
A223751C01
1.74,0.844 1.323,0.281 1.323,0.281 1.031,0.281 false 0.844,0.208 1.156,0.406 0.313,0.198 10 *1
*1 O-ring


Remove the O-ring from the camshaft timing oil control valve assembly.
