CAMSHAFT OIL CONTROL VALVE
G
8ZR-FXE ENGINE CONTROL CAMSHAFT OIL CONTROL VALVE INSPECTION
PROCEDURE
11101J
1.INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
a.
0.122,0.095 0.323,0.262
0.201,0.167
10
*a
| *a | Component without harness connected
(Camshaft Timing Oil Control Valve Assembly) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 6.9 to 7.9 Ω
If the result is not as specified, replace the camshaft timing oil control valve assembly.
b.
Check the operation.
i.
0.792,1.438 0.792,1.854
0.792,1.854 0.969,1.854
true
0.156,0.083 0.469,0.24
0.313,0.156
10
false
*a
0.51,0.719 0.823,0.875
0.313,0.156
10
false
*b
0.479,1.813 0.792,1.969
0.313,0.156
10
false
*c
1.021,1.781 1.333,1.938
0.313,0.156
10
false

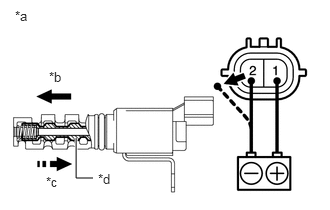

*d
| *a | Component without harness connected
(Camshaft Timing Oil Control Valve Assembly) |
| *b | When Auxiliary Battery Voltage Applied |
| *c | When Auxiliary Battery Voltage Cut Off |
| *d | Spool Valve |
Connect a positive (+) lead from the auxiliary battery to terminal 1 and a negative (-) lead to terminal 2, and check the movement of the spool valve.
- OK:
Condition Specified Condition Auxiliary battery voltage applied Valve moves in left arrow direction shown in illustration Auxiliary battery voltage cut off Valve moves in right arrow direction shown in illustration
- NOTICE:
-
Confirm that the valve moves freely and does not stick in any position.
If the result is not as specified, replace the camshaft timing oil control valve assembly.
- HINT:
-
Accumulation of foreign matter can cause minor pressure leaks. Minor pressure leaks will cause the camshaft to advance or retard, and this will cause a DTC to be stored.
