DOOR / HATCH LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH INSPECTION
PROCEDURE
84945

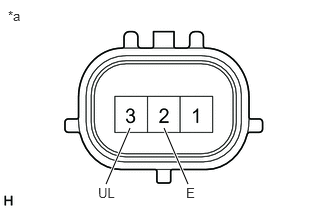

1.INSPECT LUGGAGE ELECTRICAL KEY SWITCH (for TFTM Made)
a.
Check the switch.
i.
2.313,1.917 2.063,1.333
true
1.104,1.917 1.354,1.333
true
0.083,0.083 0.552,0.385
0.469,0.302
10
false
*a
2.281,1.927 2.594,2.125
0.313,0.198
10
false
E
1.021,1.927 1.333,2.125
0.313,0.198
10
false
UL
| *a | Component without harness connected
(Luggage Electrical Key Switch) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 1 (E) - 3 (UL) Switch not pushed 10 kΩ or higher Switch pushed Below 1 Ω
If the result is not as specified, replace the luggage electrical key switch.
84945

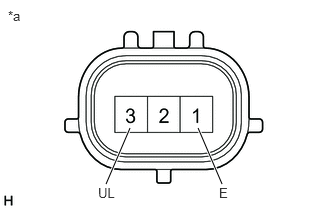

2.INSPECT LUGGAGE ELECTRICAL KEY SWITCH (for GTMC Made)
a.
Check the switch.
i.
1.958,1.917 1.708,1.333
true
1.104,1.917 1.354,1.333
true
0.083,0.083 0.552,0.385
0.469,0.302
10
false
*a
1.938,1.927 2.25,2.125
0.313,0.198
10
false
E
1.021,1.927 1.333,2.125
0.313,0.198
10
false
UL
| *a | Component without harness connected
(Luggage Electrical Key Switch) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 2 (E) - 3 (UL) Switch not pushed 10 kΩ or higher Switch pushed Below 1 Ω
If the result is not as specified, replace the luggage electrical key switch.
