8ZR-FXE EMISSION CONTROL PCV VALVE REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during PCV valve (ventilation valve sub-assembly) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of throttle body assembly · Cleaning the deposits from the throttle body assembly	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201906,202007,_51,_080778,_0393982,RM100000001I25B,202007,202304,_51,_080778,_0393982,RM100000001RNF2,202304,999999,_51,_080778,_0393982,RM100000002BDLI,)

PROCEDURE

Hide Display 17111 1.REMOVE INTAKE MANIFOLD

Click hereEngine / Hybrid System>8ZR-FXE (INTAKE / EXHAUST)>INTAKE MANIFOLD>REMOVAL201906,202304,_51,_080790,_0392072,RM100000001HNW0,202304,999999,_51,_080790,_0392072,RM100000002B0QN,

Hide Display 12261 2.REMOVE VENTILATION HOSE

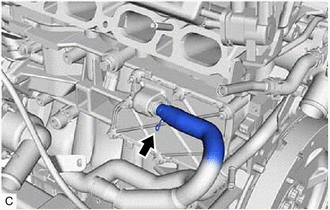

Slide the clip and remove the ventilation hose from the PCV valve (ventilation valve sub-assembly).

Hide Display 12204 3.REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

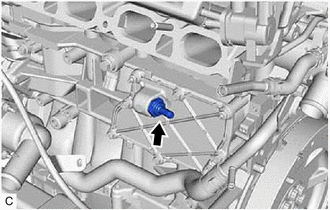

Using a 22 mm ball joint lock nut wrench, remove the PCV valve (ventilation valve sub-assembly) from the No. 1 ventilation case.
