8ZR-FXE EMISSION CONTROL PURGE VALVE REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during purge valve (purge VSV) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Gas leak from exhaust system is repaired	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201906,202007,_51,_080778,_0393982,RM100000001I25B,202007,202304,_51,_080778,_0393982,RM100000001RNF2,202304,999999,_51,_080778,_0393982,RM100000002BDLI,)

NOTICE:: When removing the fuel vapor feed hose, hold the purge valve body securely in place by hand.

PROCEDURE

Hide Display 1.DRAIN ENGINE COOLANT (for Engine)

Click hereGeneral>MAINTENANCE>8ZR-FXE COOLANT (for Engine Coolant)>REPLACEMENT201906,202304,_V1,_080956,_0392619,RM100000001HRV4_01_0004,202304,999999,_V1,_080956,_0392619,RM100000002BDID_01_0020,

Hide Display 25610 2.REMOVE EGR PIPE ASSEMBLY

Click hereEngine / Hybrid System>8ZR-FXE (INTAKE / EXHAUST)>INTAKE MANIFOLD>REMOVAL201906,202304,_51,_080790,_0392072,RM100000001HNW0_01_0161,202304,999999,_51,_080790,_0392072,RM100000002B0QN_01_0161,

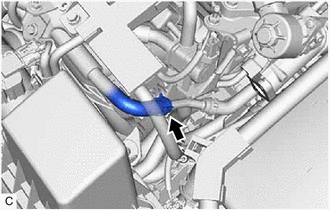

Hide Display 16296 3.DISCONNECT NO. 8 WATER BY-PASS HOSE

Slide the clip and disconnect the No. 8 water by-pass hose from the No. 3 water by-pass pipe.

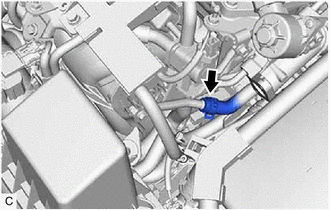

Hide Display 16297 4.DISCONNECT NO. 9 WATER BY-PASS HOSE

Slide the clip and disconnect the No. 9 water by-pass hose from the No. 3 water by-pass pipe.

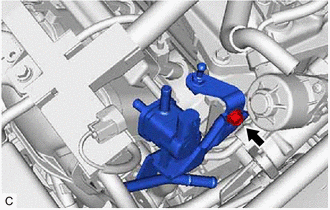

Hide Display 17650G 5.REMOVE PURGE VALVE (PURGE VSV)

1.792,0.948 2.104,0.542 2.104,0.542 2.323,0.542 true 1.365,0.948 1.208,0.354 1.208,0.354 0.979,0.354 true 2.354,0.458 2.552,0.677 0.198,0.219 10 true *1 0.75,0.271 0.969,0.469 0.219,0.198 10 true *2

*1	No. 1 Fuel Vapor Feed Hose
*2	No. 2 Fuel Vapor Feed Hose

Disconnect the purge valve (purge VSV) connector.

Disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).

Disconnect the No. 2 fuel vapor feed hose from the purge valve (purge VSV).

Remove the bolt and purge valve (purge VSV) with No. 3 water by-pass pipe from the camshaft housing sub-assembly.

Remove the screw and purge valve (purge VSV) from the No. 3 water by-pass pipe.
