Engine / Hybrid System
_080789
8ZR-FXE EMISSION CONTROL
_0392062
PURGE VALVE
G
8ZR-FXE EMISSION CONTROL PURGE VALVE INSPECTION
PROCEDURE
17650G
1.INSPECT PURGE VALVE (PURGE VSV)
a.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 23 to 26 Ω
If the result is not as specified, replace the purge valve (purge VSV).
b.
1.365,1.417 1.365,0.906
false
0.594,0.74 0.469,0.292
0.469,0.292 0.344,0.292
false
1.292,1.448 1.594,1.781
0.302,0.333
10
false
*a
0.135,0.198 0.375,0.479
0.24,0.281
10
false
*b
2.031,1.615 2.323,1.885
0.292,0.271
10
false
*c
0.083,1.156 0.302,1.396
0.219,0.24
10
false
*d

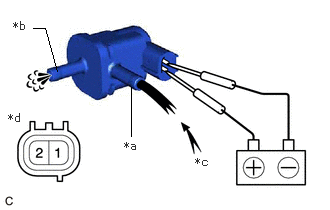

| *a | Port (E) |
| *b | Port (F) |
| *c | Air |
| *d | Component without harness connected
(Purge Valve (Purge VSV)) |
Apply auxiliary battery voltage between the terminals of the purge valve (purge VSV) and check that the following occurs when blowing air into the port (E).
- Standard:
Condition Specified Condition Auxiliary battery voltage applied between terminals 1 and 2 Air flows from port (F) Auxiliary battery voltage not applied between terminals 1 and 2 Air does not flow
If the result is not as specified, replace the purge valve (purge VSV).
