8ZR-FXE EMISSION CONTROL  EGR VALVE  INSPECTION

1.031,0.51 1.156,0.51 1.156,0.51 1.458,0.896 false 1.656,0.333 1.75,0.333 1.75,0.333 1.75,0.896 false 2.396,0.51 2.271,0.51 2.271,0.51 2.042,0.896 false 1.74,1.719 1.74,1.344 false 1.01,1.708 1.094,1.708 1.094,1.708 1.438,1.333 false 2.396,1.708 2.302,1.708 2.302,1.708 2.021,1.333 false 0.625,0.427 1.135,0.667 0.51,0.24 10 false EGR2 0.583,1.625 1.083,1.885 0.5,0.26 10 false EGR3 2.438,0.427 3.01,0.573 0.573,0.146 10 false EGR4 2.438,1.635 3.083,1.917 0.646,0.281 10 false EGR1 1.365,0.25 1.75,0.458 0.385,0.208 10 false +B1 1.615,1.74 1.979,1.896 0.365,0.156 10 false +B2 0.031,0.042 0.344,0.198 0.313,0.156 10 false *a

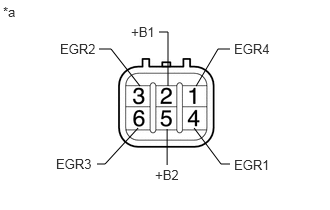

*a	Component without harness connected (EGR Valve Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
5 (+B2) - 4 (EGR1)	20°C (68°F)	18 to 22 Ω
5 (+B2) - 6 (EGR3)
2 (+B1) - 1 (EGR4)
2 (+B1) - 3 (EGR2)

If the result is not as specified, replace the EGR valve assembly.
