☰ Toyota Levin Hybrid☰ فهرستVehicle Interior › THEFT DETERRENT / KEYLESS ENTRY › SECURITY HORN ASSEMBLY(for HV Model)
RM3660EC
_58
Vehicle Interior
_080747
THEFT DETERRENT / KEYLESS ENTRY
_0392044
SECURITY HORN ASSEMBLY(for HV Model)
A
THEFT DETERRENT / KEYLESS ENTRY SECURITY HORN ASSEMBLY(for HV Model) REMOVAL
PROCEDURE
86510A
1.REMOVE SECURITY HORN ASSEMBLY
a.

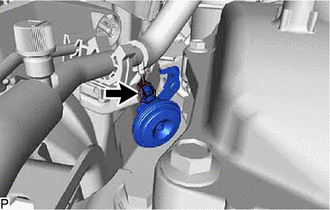

Disconnect the connector.
b.

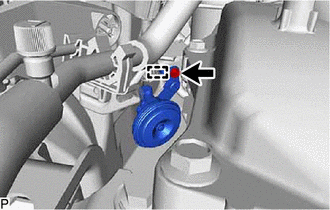

Remove the bolt.
c.
Disengage the guide to remove the security horn assembly.
