8ZR-FXE ENGINE MECHANICAL  CYLINDER HEAD  REASSEMBLY

1.833,0.292 2.146,0.49 0.313,0.198 10 false *a 1.646,1.729 1.958,1.927 0.313,0.198 10 false *b

*a	Application Width
*b	1.0 to 13.0 mm (0.0394 to 0.512 in.)

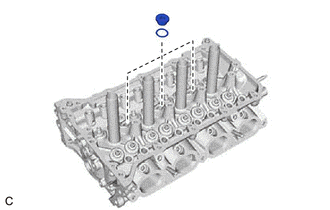

Apply adhesive to a new spark plug tube as shown in the illustration.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

Standard Application Width:

1.0 to 3.0 mm (0.0394 to 0.118 in.)

NOTICE:

·

Install the spark plug tube within 3 minutes of applying adhesive.

·

Be careful not to deform the spark plug tube.

·

Be careful not to expose the adhesive to engine oil for at least 1 hour after installing the spark plug tube.

0.74,0.354 0.979,0.354 0.979,0.354 1.344,0.875 true 0.563,0.26 0.875,0.417 0.313,0.156 10 false *a 0.531,3.271 0.781,3.438 0.25,0.167 10 false *b

*a	Wooden Block
*b	Protrusion Height

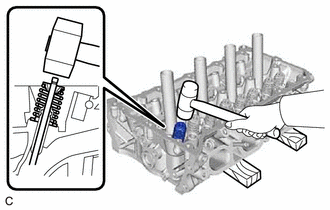

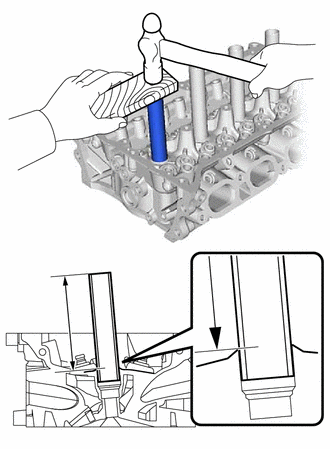

Using a wooden block and hammer, tap in the spark plug tube to the specified protrusion height.

Standard Protrusion Height:

122 mm (4.80 in.)

NOTICE:

To avoid tapping in the spark plug tube too far, measure the protrusion height while tapping it.

Using a 10 mm straight hexagon wrench, install 3 new gaskets and the 3 No. 2 straight screw plugs to the cylinder head sub-assembly.

Torque:

44 N*m (449 kgf*cm, 32 ft.*lbf)

Apply a light coat of engine oil to 16 new valve stem oil seals.

NOTICE:

Pay attention when installing the intake valve stem oil seals. For example, installing an intake side valve stem oil seal to the exhaust side or installing an exhaust side valve stem oil seal to the intake side can cause installation problems later.

HINT:

0.938,1.042 1.208,0.625 1.208,0.625 1.354,0.625 false 2.688,0.99 2.958,0.573 2.958,0.573 3.104,0.573 false 0.125,0.146 0.438,0.344 0.313,0.198 10 false *a 1.833,0.125 2.146,0.323 0.313,0.198 10 false *b 1.417,0.552 1.729,0.75 0.313,0.198 10 false *c 3.167,0.51 3.417,0.729 0.25,0.219 10 false *d

*a	Intake Side
*b	Exhaust Side
*c	Gray
*d	Black

The intake valve stem oil seal is gray and the exhaust valve stem oil seal is black.

0.365,0.177 1.052,0.667 true 3.135,1.073 3.135,1.552 true 0.583,1.302 0.896,1.458 0.313,0.156 10 false *a 1.927,1.292 2.24,1.448 0.313,0.156 10 false *b 0.083,0.083 0.542,0.281 0.458,0.198 10 false SST 3.031,1.604 3.396,1.823 0.365,0.219 10 false SST

*a	Correct
*b	Incorrect

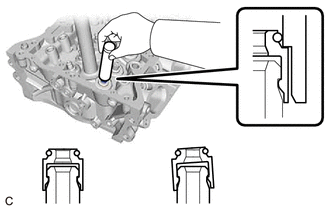

Using SST, push in the 16 valve stem oil seals.

SST

09201-41020

NOTICE:

·

Failure to use SST will cause the intake valve stem oil seal to be damaged or improperly seated.

·

Do not push in the intake valve stem oil seals at an angle.

2.604,1.323 2.917,1.521 0.313,0.198 10 false *a

*a	30 mm (1.18 in.) or more

Sufficiently apply engine oil to the tip area of the exhaust valve shown in the illustration.

0.979,0.646 1.615,0.646 false 0.927,1.271 1.563,1.271 false 0.917,1.677 1.042,1.677 1.042,1.677 1.188,1.865 false 0.719,1.188 1.031,1.385 0.313,0.198 10 false *1 0.792,0.573 1.104,0.771 0.313,0.198 10 false *2 0.708,1.604 1.021,1.802 0.313,0.198 10 false *3

*1	Inner Compression Spring
*2	Valve Spring Retainer
*3	Cylinder Head Sub-assembly
	Top Side

Install the 8 exhaust valves, 8 inner compression springs and 8 valve spring retainers to the cylinder head sub-assembly.

NOTICE:

·

Install the inner compression spring with its tapered side facing upward (towards the valve spring retainer).

·

Install the same parts in the same combination to their original locations.

1.865,2.052 2.771,1.917 2.771,1.917 2.458,1.615 false 0.573,0.281 0.688,0.375 false 2.833,1.854 3.146,2.01 0.313,0.156 10 false *a 0.323,0.177 0.781,0.375 0.458,0.198 10 false SST

*a	Wooden Block

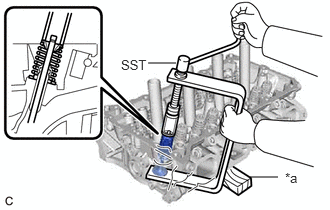

Using SST and wooden blocks, compress the inner compression spring and install the 8 valve spring retainer locks.

SST

09202-70020  (09202-01010, 09202-01020)
09202-00021

1.76,2.042 1.875,1.979 false 1,0.698 1.25,0.406 false 1.281,0.281 1.594,0.438 0.313,0.156 10 false *a 1.594,1.99 1.906,2.146 0.313,0.156 10 false *b

*a	Plastic Hammer
*b	Wooden Block

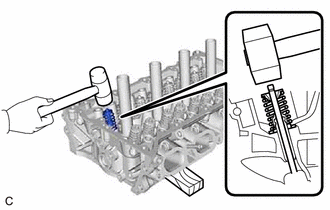

Using a plastic hammer, lightly tap the valve stem tip to ensure a proper fit.

NOTICE:

·

Be careful not to damage the valve stem tip.

·

Be careful not to damage the valve spring retainer.

2.604,1.333 2.917,1.531 0.313,0.198 10 false *a

*a	30 mm (1.18 in.) or more

Sufficiently apply engine oil to the tip area of the intake valve shown in the illustration.

0.979,0.646 1.615,0.646 false 0.927,1.271 1.563,1.271 false 0.917,1.677 1.042,1.677 1.042,1.677 1.188,1.865 false 0.719,1.188 1.031,1.385 0.313,0.198 10 false *1 0.792,0.573 1.104,0.771 0.313,0.198 10 false *2 0.708,1.604 1.021,1.802 0.313,0.198 10 false *3

*1	Inner Compression Spring
*2	Valve Spring Retainer
*3	Cylinder Head Sub-assembly
	Top Side

Install the 8 intake valves, 8 inner compression springs and 8 valve spring retainers to the cylinder head sub-assembly.

NOTICE:

·

Install the inner compression spring with its tapered side facing upward (towards the valve spring retainer).

·

Install the same parts in the same combination to their original locations.

2.604,1.844 2.896,1.844 false 1.542,0.656 1.833,0.656 false 2.969,1.771 3.281,1.927 0.313,0.156 10 false *a 1.26,0.594 1.719,0.792 0.458,0.198 10 false SST

*a	Wooden Block

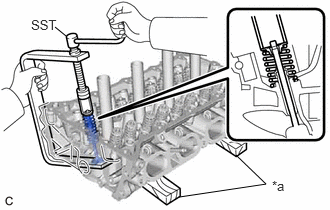

Using SST and wooden blocks, compress the inner compression spring and install the 8 valve spring retainer locks.

SST

09202-70020  (09202-01010, 09202-01020)
09202-00021

2.656,1.896 3.104,1.948 3.104,1.948 3.104,1.552 false 2,0.844 2.302,0.323 true 2.333,0.156 2.646,0.313 0.313,0.156 10 false *a 3.125,1.969 3.375,2.167 0.25,0.198 10 false *b

*a	Plastic Hammer
*b	Wooden Block

Using a plastic hammer, lightly tap the valve stem tip to ensure a proper fit.

NOTICE:

·

Be careful not to damage the valve stem tip.

·

Be careful not to damage the valve spring retainer.
