8ZR-FXE ENGINE MECHANICAL  REAR CRANKSHAFT OIL SEAL  COMPONENTS

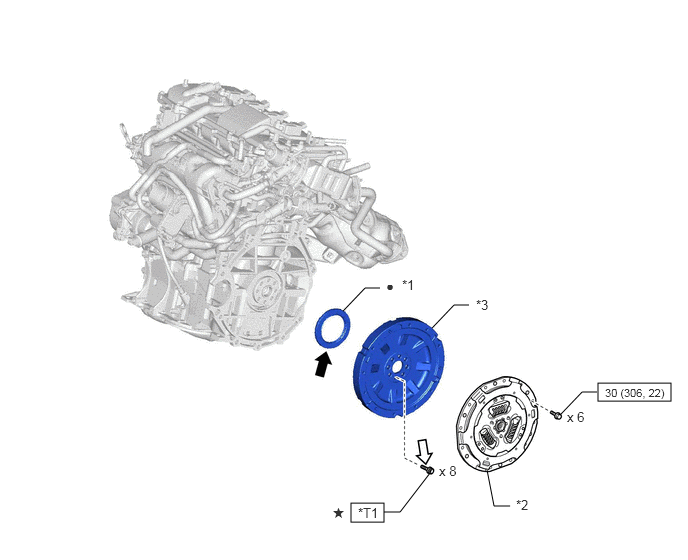

ILLUSTRATION

3.656,5.24 4,5.438 0.344,0.198 6.229,3.99 6.99,4.177 0.76,0.188 3.573,3.24 3.802,3 3.802,3 3.958,3 false 4.5,3.417 4.729,3.177 4.729,3.177 4.885,3.177 false 5.313,5.271 5.146,5.271 5.146,5.271 5.073,4.896 false 4,5.333 4.167,5.333 4.167,5.333 4.479,4.927 false 5.833,4.323 6.063,4.083 6.063,4.083 6.219,4.083 false 4.188,2.885 4.615,3.063 0.427,0.177 10 false *1 5.375,5.177 5.688,5.333 0.313,0.156 10 false *2 4.958,3.094 5.271,3.25 0.313,0.156 10 false *3 3.729,5.26 4.198,5.417 0.469,0.156 10 false *T1 6.302,4.021 7.094,4.177 0.792,0.156 8 false 30 (306, 22) 5.906,4.26 6.365,4.458 0.458,0.198 10 false x 6 4.573,4.823 5.031,5.021 0.458,0.198 10 false x 8 3.458,5.26 3.667,5.49 0.208,0.229 10 false ★ 4.021,2.896 4.177,3.094 0.156,0.198 10 false ●

*1	REAR ENGINE OIL SEAL	*2	TRANSMISSION INPUT DAMPER ASSEMBLY
*3	FLYWHEEL SUB-ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part
	MP grease		Adhesive 1324
★	Precoated part	-	-
*T1	1st: 49 (500, 36) 2nd: Turn 90°	-	-
