8ZR-FXE ENGINE MECHANICAL  FRONT CRANKSHAFT OIL SEAL  REMOVAL

0.385,1.25 0.438,1.781 0.438,1.781 0.531,1.781 true 1.396,1.667 1.885,1.271 1.885,1.271 1.625,1.813 true 0.25,2.26 0.563,2.458 0.313,0.198 10 false *a 1.865,1.021 2.323,1.219 0.458,0.198 10 true SST 1.583,3.188 1.896,3.385 0.313,0.198 10 false *b 0.583,1.698 1.042,1.896 0.458,0.198 10 false SST

*a	Hold
*b	Turn

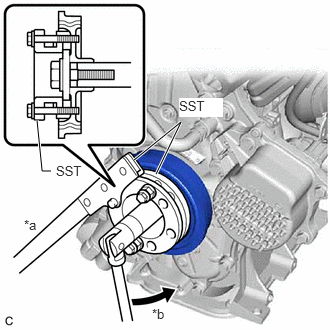

Using SST to hold the crankshaft pulley, loosen the crankshaft pulley set bolt. Further loosen the crankshaft pulley set bolt until 2 or 3 threads remain screwed into the crankshaft.

SST

09213-58014  (91551-80840)
09330-00021

0.542,2.76 0.729,2.76 0.729,2.76 0.958,2.344 true 0.552,1.406 0.708,1.406 0.708,1.406 0.771,1.302 false 0.25,2.667 0.708,2.865 0.458,0.198 10 false SST 0.219,1.854 0.531,2.052 0.313,0.198 10 false *a 0.771,3.115 1.083,3.313 0.313,0.198 10 false *b 0.25,1.333 0.708,1.531 0.458,0.198 10 false SST

*a	Hold
*b	Turn

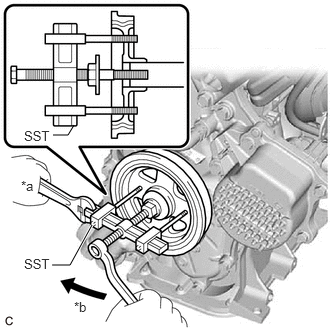

Using SST and the crankshaft pulley set bolt, remove the crankshaft pulley and crankshaft pulley set bolt.

SST

09950-50013  (09951-05010, 09952-05010, 09953-05020, 09954-05021)

HINT:

Apply lubricant to the threads and end of SST.

1.406,1.292 1.646,1.74 1.646,1.74 1.958,1.74 true 2.208,2.542 2.708,2.938 2.708,2.938 3.146,2.542 false 2.01,1.646 2.323,1.844 0.313,0.198 10 false *b 2.656,3 2.969,3.198 0.313,0.198 10 false *a

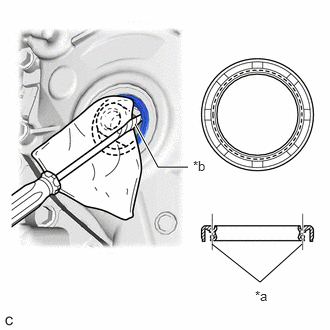

*a	Cut Position
*b	Protective Tape

Using a knife, cut through the lip of the timing chain cover oil seal.
