RM3660EC _51 Engine / Hybrid System _080726 8ZR-FXE ENGINE MECHANICAL _0391617 FRONT CRANKSHAFT OIL SEAL A

8ZR-FXE ENGINE MECHANICAL  FRONT CRANKSHAFT OIL SEAL  INSTALLATION


PROCEDURE

Hide 11302A 1.INSTALL TIMING CHAIN COVER OIL SEAL

a.

Apply MP grease to the lip of a new timing chain cover oil seal.

NOTICE:

Keep the lip free from foreign matter.



b.

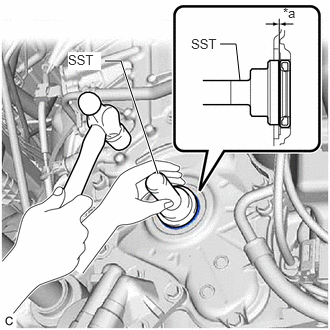

A372542C03
1.094,0.635 1.26,0.635 1.26,0.635 1.646,1.813 true 2.292,0.458 2.458,0.458 2.458,0.458 2.5,0.844 false 0.708,0.542 1.052,0.729 0.344,0.188 10 true SST 2.948,0.052 3.26,0.25 0.313,0.198 10 false *a 1.99,0.375 2.333,0.563 0.344,0.188 10 false SST
*a Tap in Depth


Using SST and a hammer, tap in the timing chain cover oil seal until its surface is flush with the timing chain cover assembly edge.

SST
09223-22010

Timing Chain Cover Oil Seal Tap in Depth:

-1.0 to 1.0 mm (-0.0394 to 0.0394 in.)


NOTICE:
·

Keep the lip free from foreign matter.

·

Do not tap in the timing chain cover oil seal at an angle.




Hide 13471 2.INSTALL CRANKSHAFT PULLEY

a.

Align the crankshaft timing gear key with the crankshaft pulley set key groove of the crankshaft pulley.


b.
A372543C03
2.146,3.188 2.427,2.771 2.427,2.771 2.563,2.771 true 1.51,2.583 1.563,3.073 1.563,3.073 1.844,2.76 true 0.396,1.24 0.448,1.938 0.448,1.938 0.583,1.938 true 0.198,2.719 0.406,2.906 0.208,0.188 10 false *b 2.625,2.698 2.875,2.854 0.25,0.156 10 true *a 1.417,3.135 1.875,3.333 0.458,0.198 10 false SST 0.656,1.844 1.115,2.042 0.458,0.198 10 false SST
*a Hold
*b Turn


Using SST to hold the crankshaft pulley in place, tighten the crankshaft pulley set bolt.

SST
09213-58014  (91551-80840)
09330-00021

Torque:
190 N*m (1937 kgf*cm, 140 ft.*lbf)
