MAINTENANCE  AC60E AUTOMATIC TRANSMISSION FLUID  REPLACEMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after automatic transmission fluid replacement are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedures Effects/Inoperative when not Performed Link
Automatic transmission fluid ATF thermal degradation estimate reset The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly for 1GD-FTV:(Click here)
for 7GR-FKS:(Click here)
for 1GD-FTV for EGR with Exhaust Gas Temperature Sensor:(Click here)

PROCEDURE

Hide 2.REPLACE AUTOMATIC TRANSMISSION FLUID

a.

Lift the vehicle. [*1]

NOTICE:

Set the vehicle on a lift so that the vehicle is kept level when it is lifted up (make sure that the tilt angle from the front to rear of the vehicle is within +/-1°).



b.

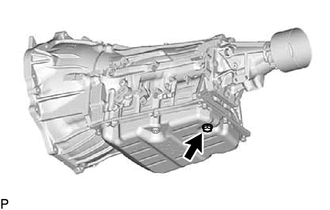

C407222

Remove the drain plug and gasket from the automatic transmission assembly and drain the automatic transmission fluid. [*2]


c.

Temporarily install the gasket and drain plug to the automatic transmission assembly. [*3]

HINT:

Reuse the old gasket as the drain plug will be removed again.



d.
C407223

Remove the refill plug and O-ring from the automatic transmission assembly. [*4]


e.
C407224

Using a 5 mm hexagon socket wrench, remove the overflow plug and gasket from the automatic transmission assembly. [*5]


f.

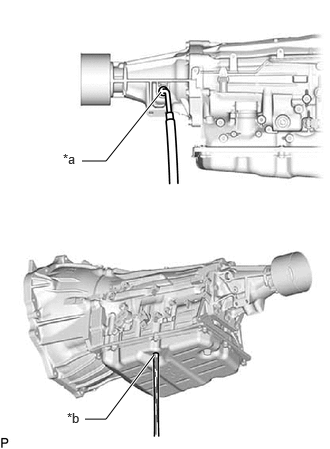

C407225C01
0.854,1.677 1.104,1.677 1.104,1.677 1.677,0.958 true 0.885,4.365 1.104,4.365 1.104,4.365 1.604,3.698 true 0.656,1.573 0.865,1.823 0.208,0.25 10 false *a 0.698,4.271 0.896,4.479 0.198,0.208 10 false *b
*a Refill Hole
*b Overflow Hole


Add automatic transmission fluid to the refill hole until it flows out of the overflow hole. [*6]

NOTICE:
·

Use Toyota Genuine ATF WS.

Using transmission fluid other than the above type may cause abnormal noise or vibration, or damage the transmission of your vehicle.

·

Be sure to add automatic transmission fluid slowly. If automatic transmission fluid is added quickly, the automatic transmission fluid may hit internal parts and bounce back, resulting in automatic transmission fluid coming out of the refill hole.




g.

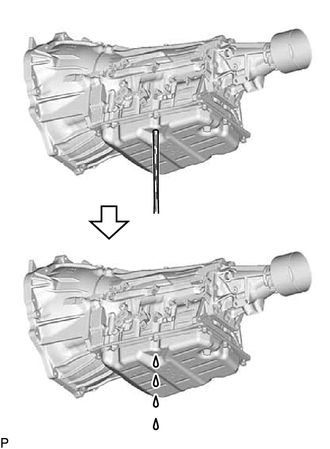

C407226

Wait until the automatic transmission fluid flow slows and only drips come out. [*7]


h.
C407224

Using a 5 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the automatic transmission assembly. [*8]

HINT:

Reuse the old gasket as the overflow plug will be removed again.



i.

Add the amount of automatic transmission fluid specified for removal and installation of the automatic transmission oil pan sub-assembly to the refill hole. [*9]

Specified Amount of Fluid:

3.1 liters (3.3 US qts, 2.7 Imp. qts)


HINT:

If the specified amount of automatic transmission fluid cannot be added, perform steps [*10] to [*15].



j.

Temporarily install the O-ring and refill plug to the automatic transmission assembly. [*10]

HINT:

Reuse the old O-ring as the refill plug will be removed again.



k.

Lower the vehicle. [*11]


l.

Start the engine. [*12]

NOTICE:

To reduce load, make sure that all electrical systems, such as the air conditioning, lighting system, electric fan and audio system, are off.



m.

Slowly move the shift lever from P to S, then move the shift lever to P. [*13]

HINT:

Keep the shift lever in each position for approximately 3 seconds.



n.

Allow the engine to idle for 30 seconds to warm it up. [*14]


o.

Turn the ignition switch off. [*15]


p.

Repeat steps [*1] to [*15].


q.

Repeat steps [*1] to [*2].


r.

Install a new gasket and the drain plug to the automatic transmission assembly.

Torque:
20 N*m (204 kgf*cm, 15 ft.*lbf)


s.

Repeat steps [*4] to [*11].
