MAINTENANCE  REAR WIPER RUBBER  INSTALLATION

0,0 0,0 false

Install in this Direction

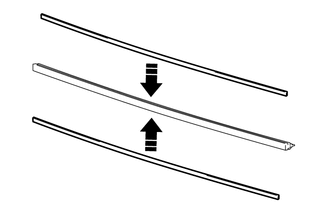

Install the 2 rear wiper rubber backing plates to the rear wiper rubber.

NOTICE:

Install the backing plates so that they are facing in the correct direction.

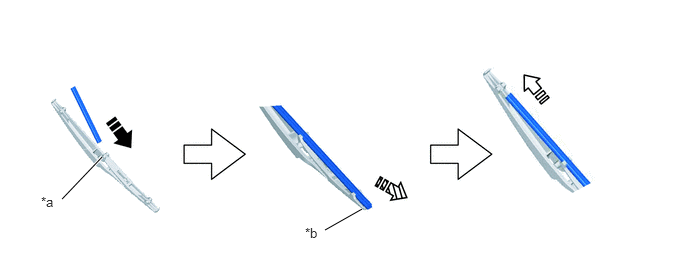

Install the rear wiper rubber together with the 2 rear wiper rubber backing plates to the rear wiper blade assembly from the claw in the center of the rear wiper blade.

1.063,1.635 0.646,2.073 true 3.771,2.177 3.385,2.396 true 0.427,2.021 0.74,2.177 0.313,0.156 10 false *a 3.177,2.344 3.49,2.5 0.313,0.156 10 false *b

*a	Claw in the Center of the Rear Wiper Blade Assembly	*b	Stopper
	Install in this Direction (1)		Install in this Direction (2)
	Through	-	-

After passing the rear wiper rubber together with the 2 rear wiper rubber backing plates through the claw of the rear wiper blade assembly, pull them through the stopper and then through the claw on the opposite side to install them.

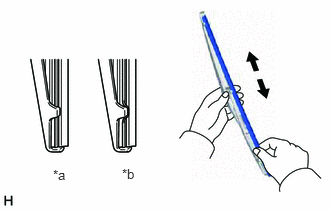

HINT:

0.552,1.74 0.865,1.896 0.313,0.156 10 false *a 1.271,1.729 1.583,1.885 0.313,0.156 10 false *b

*a	Correct
*b	Incorrect
	Slide

·

If the rear wiper blade claw is not in the rear wiper rubber groove, grasp the rear wiper rubber and slide the rubber up and down multiple times to insert the claw into the groove.

·

Applying a small amount of window washer fluid to the rear wiper rubber can make it easier to insert into the groove.

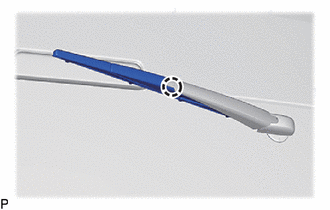

Attach the claw to install the rear wiper blade assembly.

Attach the claw to install the rear wiper blade assembly LH.
