WIPER / WASHER  REAR WIPER MOTOR  REMOVAL

67938A 1.REMOVE BACK DOOR SIDE GARNISH LH (for Wagon)

67937B 2.REMOVE BACK DOOR SIDE GARNISH RH (for Wagon)

67760A 3.REMOVE BACK DOOR UPPER TRIM BOARD ASSEMBLY (for Wagon)

67760A 4.REMOVE BACK DOOR UPPER TRIM BOARD ASSEMBLY (except Wagon, for Regular)

67760A 5.REMOVE BACK DOOR UPPER TRIM BOARD ASSEMBLY (except Wagon, for Large)

67760A 6.REMOVE BACK DOOR UPPER TRIM BOARD ASSEMBLY (for Double Swing Out Type)

7.REMOVE REAR WIPER ARM AND BLADE ASSEMBLY (except Double Swing Out Type)

a.

0,0 0,0 false

Remove in this Direction

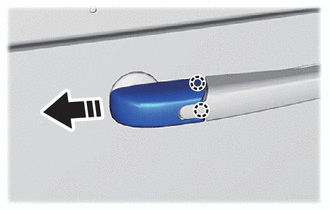

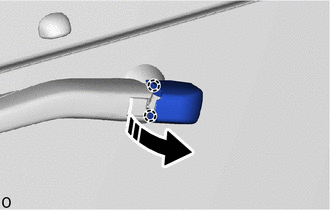

Slide the rear wiper arm head cap as shown in the illustration to detach the claw.

b.

0,0 0,0 false

Remove in this Direction

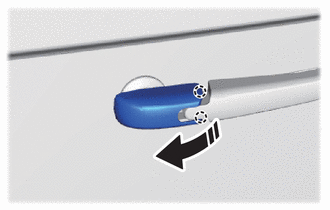

Move the rear wiper arm head cap in the direction indicated by the arrow shown in the illustration and detach the claw.

c.

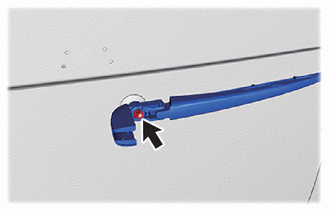

Remove the nut and rear wiper arm and blade assembly.

8.REMOVE REAR WIPER ARM AND BLADE ASSEMBLY LH (for Double Swing Out Type)

HINT:

Use the same procedure for the RH and LH sides.

a.

0,0 0,0 false

Remove in this Direction

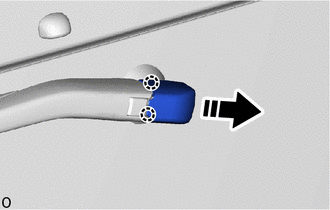

Slide the rear wiper arm head cap as shown in the illustration to detach the claw.

b.

0,0 0,0 false

Remove in this Direction

Move the rear wiper arm head cap in the direction indicated by the arrow shown in the illustration and detach the claw.

c.

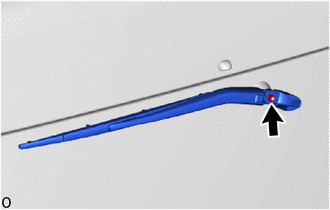

Remove the nut and rear wiper arm and blade assembly.

9.REMOVE REAR WIPER ARM AND BLADE ASSEMBLY RH (for Double Swing Out Type)

85110R 10.REMOVE REAR WIPER MOTOR ASSEMBLY (except Double Swing Out Type)

a.

0,0 0,0 false

	Bolt
	Connector

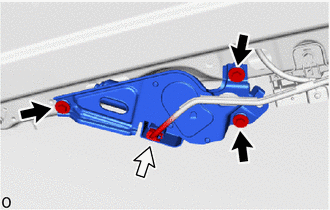

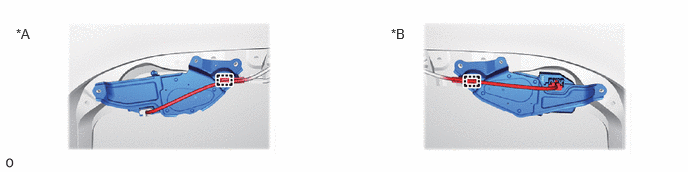

Disconnect the connector.

b.

Loosen the 3 bolts and disconnect the rear wiper motor assembly.

NOTICE:

Do not subject the rear wiper motor assembly to strong impacts or force, and do not drop it.

c.

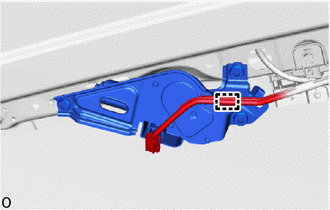

Detach the clamp and remove the rear wiper motor assembly.

85110R 11.REMOVE REAR WIPER MOTOR ASSEMBLY (for Double Swing Out Type)

a.

Disconnect the connector.

b.

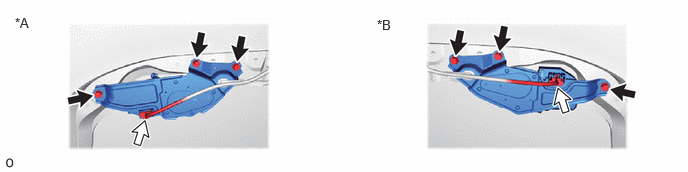

Loosen the 3 bolts and disconnect the rear wiper motor assembly.

0.156,0.156 0.469,0.354 0.313,0.198 10 false *A 3.927,0.177 4.24,0.375 0.313,0.198 10 false *B

*A	for RH Side	*B	for LH Side
	Bolt		Connector

NOTICE:

Do not subject the rear wiper motor assembly to strong impacts or force, and do not drop it.

c.

Detach the clamp and remove the rear wiper motor assembly.

0.167,0.271 0.479,0.469 0.313,0.198 10 false *A 4.073,0.271 4.385,0.469 0.313,0.198 10 false *B

*A

for RH Side

*B

for LH Side

85143R 12.REMOVE REAR WIPER MOTOR GROMMET (except Double Swing Out Type)

a.

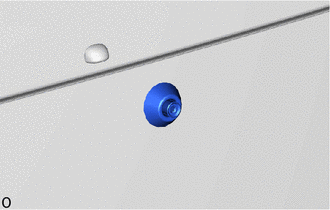

Remove the rear wiper motor grommet.

85143R 13.REMOVE REAR WIPER MOTOR GROMMET (for Double Swing Out Type)

HINT:

Use the same procedure for the RH and LH sides.

a.

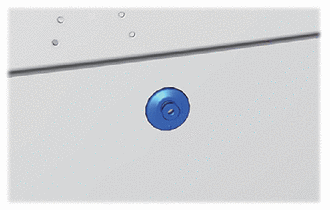

Remove the rear wiper motor grommet.
