WIPER / WASHER  WASHER NOZZLE(for Rear Side)  ON-VEHICLE INSPECTION


PROCEDURE

Hide 85035R 1.INSPECT REAR WASHER NOZZLE SUB-ASSEMBLY (except Double Swing Out Type, for Standard Roof)

a.

With the ignition switch ON, check that the center stream of washer fluid sprays on the back door glass within the hatched area shown in the illustration.

Standard:

Washer fluid hits the back door glass in the area shown in the illustration.

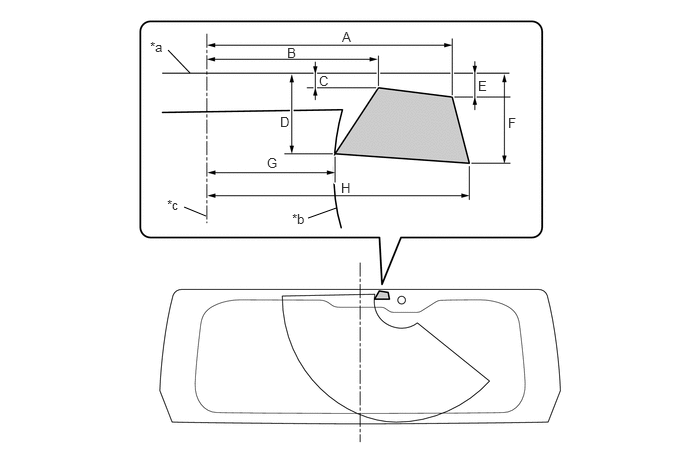

B540171C01
1.75,0.521 1.979,0.76 false 2.146,2.25 1.917,2.156 false 3.208,2.271 3.5,2.167 false 1.563,0.406 1.875,0.563 0.313,0.156 10 false *a 3.042,2.198 3.354,2.354 0.313,0.156 10 false *b 3.563,0.302 3.813,0.458 0.25,0.156 10 false A 2.99,0.469 3.24,0.625 0.25,0.156 10 false B 4.979,0.813 5.229,0.969 0.25,0.156 10 false E 2.917,1.188 3.167,1.344 0.25,0.156 10 false D 1.74,2.052 2.052,2.208 0.313,0.156 10 false *c 3.323,0.76 3.573,0.917 0.25,0.156 10 false C 5.292,1.198 5.542,1.354 0.25,0.156 10 false F 2.781,1.615 3.031,1.771 0.25,0.156 10 false G 3.552,1.875 3.802,2.031 0.25,0.156 10 false H
*a Glass Edge *b Wiper Pattern
*c Center Line - -
V100145

Landing Area - -


Standard Measurement:
Area Measurement Area Measurement
A 118.2 mm (4.65 in.) B 82.8 mm (3.26 in.)
C 6.2 mm (0.244 in.) D 37.5 mm (1.48 in.)
E 10.5 mm (0.413 in.) F 42.1 mm (1.66 in.)
G 61.8 mm (2.43 in.) H 126.4 mm (4.98 in.)



Hide 85035R 2.INSPECT REAR WASHER NOZZLE SUB-ASSEMBLY (except Double Swing Out Type, for High Roof)

a.

With the ignition switch ON, check that the center stream of washer fluid sprays on the back door glass within the hatched area shown in the illustration.

Standard:

Washer fluid hits the back door glass in the area shown in the illustration.

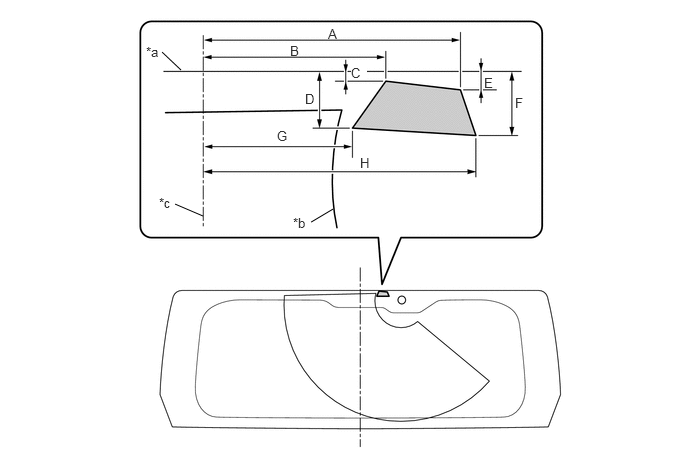

B541416C01
1.688,0.542 1.885,0.729 false 3.24,2.313 3.469,2.177 false 1.823,2.125 2.115,2.25 false 1.521,0.458 1.833,0.615 0.313,0.156 10 false *a 3.052,2.24 3.365,2.396 0.313,0.156 10 false *b 1.656,2.031 1.969,2.188 0.313,0.156 10 false *c 3.417,0.271 3.573,0.427 0.156,0.156 10 false A 3.021,0.448 3.188,0.604 0.167,0.156 10 false B 3.656,0.677 3.823,0.833 0.167,0.156 10 true C 3.177,0.948 3.344,1.104 0.167,0.156 10 false D 5.042,0.781 5.208,0.938 0.167,0.156 10 false E 5.365,0.99 5.531,1.146 0.167,0.156 10 false F 2.885,1.333 3.052,1.49 0.167,0.156 10 false G 3.75,1.615 3.917,1.771 0.167,0.156 10 false H
*a Glass Edge *b Wiper Pattern
*c Center Line - -
V100145

Landing Area - -


Standard Measurement:
Area Measurement Area Measurement
A 116.8 mm (4.60 in.) B 84.6 mm (3.33 in.)
C 4.0 mm (0.157 in.) D 24.1 mm (0.949 in.)
E 7.3 mm (0.287 in.) F 26.9 mm (1.06 in.)
G 69.5 mm (2.74 in.) H 123.4 mm (4.86 in.)



Hide 85035R 3.INSPECT REAR WASHER NOZZLE SUB-ASSEMBLY (for Double Swing Out Type)

a.

With the ignition switch ON, check that the center stream of washer fluid sprays on the back door glass within the hatched area shown in the illustration.

Standard:

Washer fluid hits the back door glass in the area shown in the illustration.

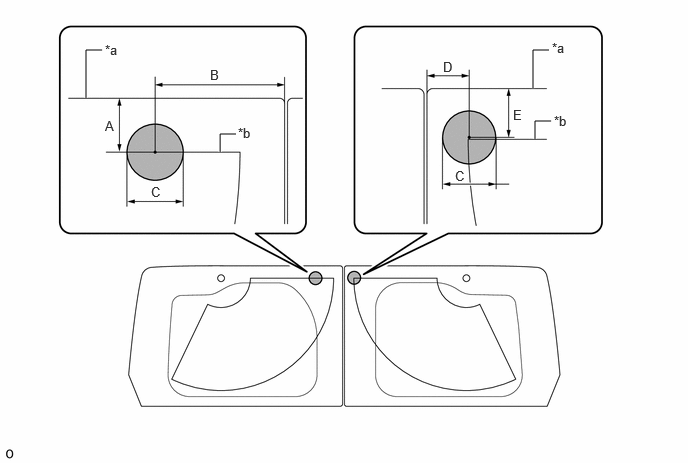

B655951C01
1.063,0.521 0.896,0.521 0.896,0.521 0.896,1.021 true 5.719,0.521 5.552,0.521 5.552,0.521 5.552,0.917 true 5.74,1.26 5.573,1.26 5.573,1.26 5.573,1.448 true 2.458,1.396 2.292,1.396 2.292,1.396 2.292,1.583 true 1.094,0.438 1.406,0.594 0.313,0.156 10 false *a 2.479,1.302 2.792,1.458 0.313,0.156 10 false *b 1.094,1.229 1.344,1.385 0.25,0.156 10 false A 2.188,0.698 2.438,0.854 0.25,0.156 10 false B 5.344,1.115 5.594,1.271 0.25,0.156 10 false E 4.615,0.615 4.865,0.771 0.25,0.156 10 false D 5.771,1.177 6.083,1.333 0.313,0.156 10 false *b 1.573,1.917 1.823,2.073 0.25,0.156 10 false C 4.74,1.75 4.99,1.906 0.25,0.156 10 false C 5.75,0.417 6.063,0.573 0.313,0.156 10 false *a
*a Glass Edge *b Wiper Pattern
V100145

Landing Area - -


Standard Measurement:
Area Measurement Area Measurement
A 45.0 mm (1.77 in.) B 116.0 mm (4.56 in.)
C 50.0 mm (1.97 in.) D 39.0 mm (1.54 in.)
E 47.0 mm (1.85 in.) - -
