RM35X0E _59 Vehicle Exterior _079318 WINDOW / GLASS _0545770 BACK DOOR GLASS(for Double Swing Out Type) A

WINDOW / GLASS  BACK DOOR GLASS(for Double Swing Out Type)  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 87950 1.REMOVE OUTER UNDER REAR VIEW MIRROR ASSEMBLY (for LH Side with Outer Under Rear View Mirror)

Click hereVehicle Exterior>MIRROR (EXT)>OUTER UNDER REAR VIEW MIRROR>REMOVAL

Hide 68131 7.REMOVE BACK DOOR GLASS

a.

w/ Rear Window Defogger:

i.

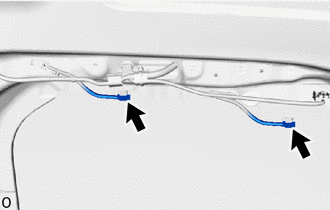

B655041

Disconnect the 2 connectors.



b.

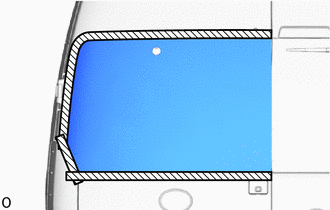

B655042C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape to the outer surface of the vehicle body to prevent scratches.

NOTICE:

When separating the back door glass from the vehicle, be careful not to damage the vehicle paint or interior/exterior ornaments.



c.

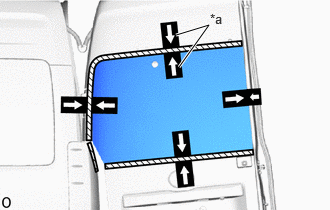

B655043C01
1.833,0.365 2.177,0.26 2.177,0.26 1.865,0.698 true 2.188,0.115 2.5,0.313 0.313,0.198 10 false *a
*a Matchmark


When reusing the back door glass:

i.

Place matchmarks over the glass and vehicle body at the locations indicated in the illustration.


ii.

Install the suction cups to the back door glass.



d.

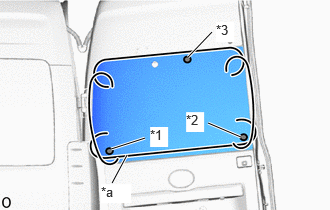

B655044C01
1.323,1.615 1.167,1.906 true 1.156,1.552 1.51,1.438 true 2.51,1.427 2.167,1.281 true 1.958,0.594 2.208,0.333 true 1.052,1.917 1.365,2.115 0.313,0.198 10 true *a 1.563,1.323 1.75,1.531 0.188,0.208 10 true *1 1.938,1.167 2.125,1.375 0.188,0.208 10 true *2 2.25,0.229 2.438,0.438 0.188,0.208 10 true *3
*1 Back Window Glass Clip LH
*2 Back Window Glass Clip RH
*3 No. 2 Back Window Glass Spacer
*a Piano Wire


From the interior, insert a piano wire between the vehicle body and glass as shown in the illustration.


e.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

NOTICE:

When separating the glass from the vehicle, be careful not to damage the vehicle paint or interior/exterior ornaments.



f.

Cut through the adhesive by pulling the piano wire around the back door glass.


g.

Using suction cups, disconnect the back window glass clip LH, back window glass clip RH and No. 2 back window glass spacer and remove the back door glass.

NOTICE:

Do not drop the back door glass.
