REAR FOG LIGHT BULB
A
MAINTENANCE REAR FOG LIGHT BULB INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
·Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
81210T
1.INSTALL REAR FOG LIGHT BULB
a.
0,0 0,0
false
|

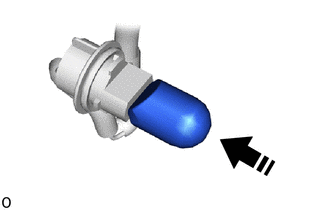

Install in this Direction |
Install the rear fog light bulb to the bulb socket.
b.
1.083,0.573 1.49,1.135
true
1.198,0.479 0.844,0.24
true
3.021,0.771 3.125,1.156
true
1.479,1.146 1.656,1.333
0.177,0.188
10
true
*a
0.677,0.135 0.844,0.313
0.167,0.177
10
true
*b
3.073,1.167 3.25,1.323
0.177,0.156
10
true
*c
| *a | Matchmark |
| *b | Unlock Position Mark |
| *c | Lock Position Mark |
|
|
Turn in this Direction |
Align the matchmark of the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the lock position mark to connect the bulb socket.
2.INSTALL REAR COMBINATION LIGHT ASSEMBLY LH
