REAR FOG LIGHT BULB
A
MAINTENANCE REAR FOG LIGHT BULB REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
·Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
1.REMOVE REAR COMBINATION LIGHT ASSEMBLY LH
81210T
2.REMOVE REAR FOG LIGHT BULB
a.
1.167,0.76 1.573,1.052
true
2.531,0.198 2.938,0.49
true
1.521,1.083 1.677,1.26
0.156,0.177
10
true
*a
2.344,0.094 2.521,0.281
0.177,0.188
10
true
*b

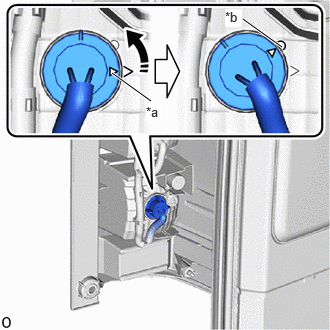

| *a | Matchmark |
| *b | Unlock Position Mark |
|
Turn in this Direction |
Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.
b.
0,0 0,0
false
|
|

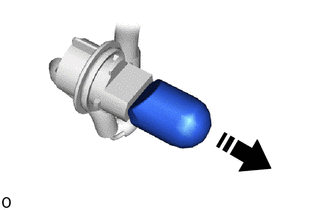

Remove in this Direction |
Remove the rear fog light bulb from the bulb socket.
