BACK-UP LIGHT BULB
A
MAINTENANCE BACK-UP LIGHT BULB INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
81550N
1.INSTALL BACK-UP LIGHT BULB

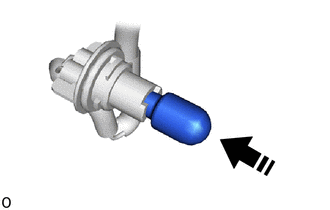

a.
0,0 0,0
false
|
Install in this Direction |
Install the back-up light bulb to the bulb socket.

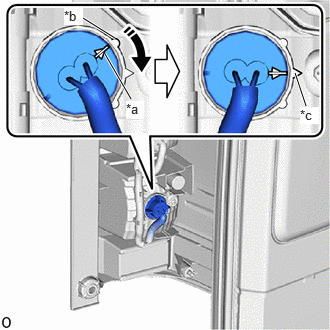

b.
1.094,0.563 1.365,1.031
true
1.198,0.396 0.865,0.188
true
3.188,1.104 3.073,0.76
true
1.313,1.052 1.5,1.24
0.188,0.188
10
true
*a
0.667,0.083 0.865,0.26
0.198,0.177
10
true
*b
3.125,1.115 3.323,1.292
0.198,0.177
10
true
*c
| *a | Matchmark |
| *b | Unlock Position Mark |
| *c | Lock Position Mark |
|
|
Turn in this Direction |
Align the bulb socket to the unlock position mark, and then turn the bulb socket clockwise until the lock position mark to connect the bulb socket.
2.INSTALL REAR COMBINATION LIGHT ASSEMBLY LH
