BACK-UP LIGHT BULB
A
MAINTENANCE BACK-UP LIGHT BULB REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
1.REMOVE REAR COMBINATION LIGHT ASSEMBLY LH
81550N
2.REMOVE BACK-UP LIGHT BULB
a.
1.313,1.125 1.167,0.76
true
2.594,0.208 2.927,0.479
true
1.271,1.156 1.458,1.344
0.188,0.188
10
true
*a
2.385,0.094 2.573,0.26
0.188,0.167
10
true
*b

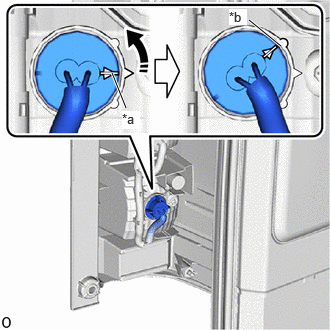

| *a | Matchmark |
| *b | Unlock Position Mark |
|
Turn in this Direction |
Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.
b.
0,0 0,0
false
|
|

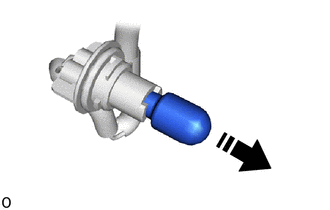

Remove in this Direction |
Remove the back-up light bulb from the bulb socket.
