MAINTENANCE
_0384289
TAIL LIGHT BULB
A
MAINTENANCE TAIL LIGHT BULB INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure described below is for the LH side.
PROCEDURE
81550H
1.INSTALL TAIL AND STOP LIGHT BULB
a.
0,0 0,0
false
|

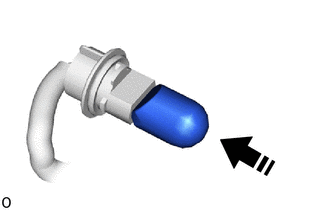

Install in this Direction |
Install the tail and stop light bulb to the bulb socket.
b.
1.052,0.563 1.281,1
true
1.146,0.469 0.854,0.188
true
2.979,0.74 3.083,0.969
true
1.24,1.01 1.427,1.188
0.188,0.177
10
true
*a
0.677,0.094 0.844,0.271
0.167,0.177
10
true
*b
3.021,0.969 3.229,1.156
0.208,0.188
10
true
*c

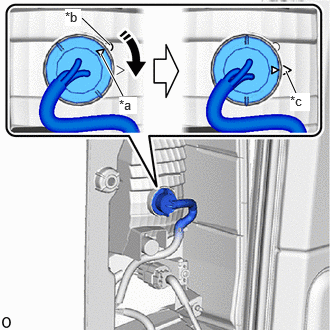

| *a | Matchmark |
| *b | Unlock Position Mark |
| *c | Lock Position Mark |
|
|
Turn in this Direction |
Align the matchmark of the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the lock position mark to connect the bulb socket.
2.INSTALL REAR COMBINATION LIGHT ASSEMBLY LH
