TAIL LIGHT BULB
A
MAINTENANCE TAIL LIGHT BULB REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
1.REMOVE REAR COMBINATION LIGHT ASSEMBLY LH
81550H
2.REMOVE TAIL AND STOP LIGHT BULB
a.
1.115,0.76 1.323,1.042
true
2.896,0.5 3.063,0.375
true
1.344,0.979 1.521,1.177
0.177,0.198
10
true
*a
3.094,0.281 3.281,0.458
0.188,0.177
10
true
*b

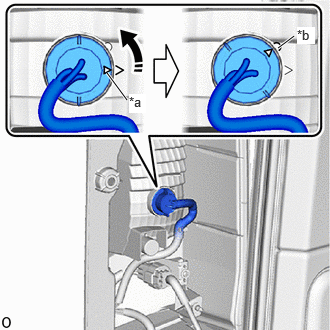

| *a | Matchmark |
| *b | Unlock Position Mark |
|
Turn in this Direction |
Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.
b.
0,0 0,0
false
|
|

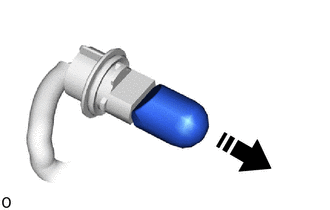

Remove in this Direction |
Remove the tail and stop light bulb from the bulb socket.
