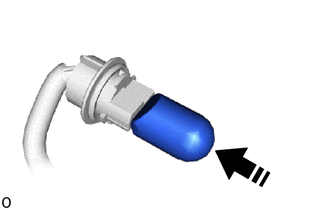

MAINTENANCE  REAR TURN SIGNAL LIGHT BULB  INSTALLATION

1.396,1.021 1.094,0.542 true 0.875,0.198 1.188,0.438 true 3.115,1.094 3.052,0.771 true 1.375,1.031 1.688,1.188 0.313,0.156 10 false *a 0.698,0.104 0.885,0.271 0.188,0.167 10 true *b 3.063,1.104 3.25,1.281 0.188,0.177 10 true *c

*a	Matchmark
*b	Unlock Position Mark
*c	Lock Position Mark
	Turn in this Direction

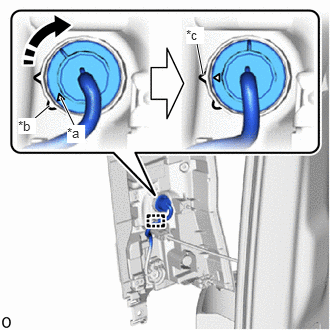

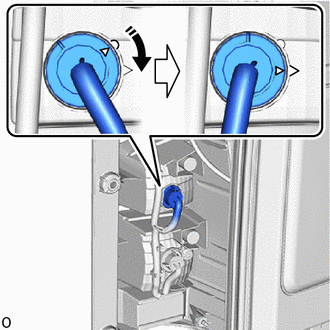

Align the matchmark of the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the lock position mark to connect the bulb socket.

0.771,1.302 0.635,1.021 true 0.365,1.229 0.51,1.104 true 2.115,0.781 2.052,0.458 true 0.698,1.302 0.885,1.49 0.188,0.188 10 true *a 0.188,1.229 0.375,1.396 0.188,0.167 10 true *b 1.938,0.281 2.125,0.458 0.188,0.177 10 true *c

*a	Matchmark
*b	Unlock Position Mark
*c	Lock Position Mark
	Turn in this Direction

Attach the clamp.

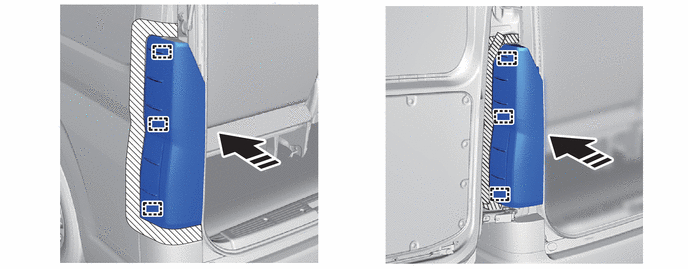

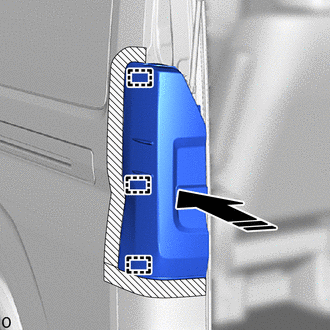

Slide the rear combination light assembly LH towards the vehicle front to attach the pin.

0.698,0.146 0.938,0.375 0.24,0.229 12 true *A 4.115,0.135 4.333,0.354 0.219,0.219 12 true *B

*A	except Double Swing Out Type	*B	for Double Swing Out Type
	Slide in this Direction	-	-

Install the 3 screws.

0.948,0.115 1.198,0.354 0.25,0.24 12 false *A 4.104,0.125 4.344,0.354 0.24,0.229 12 true *B

*A

except Double Swing Out Type

*B

for Double Swing Out Type

0,0 0,0 false

Install in this Direction

Slide the rear combination light assembly LH towards the vehicle front to attach the pin.

0,0 0,0 false

Protective Tape

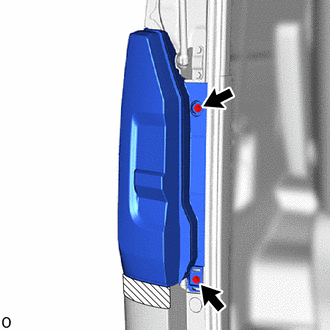

Install the 2 screws.
