RM35X0E _V1 General _078672 MAINTENANCE _0384283 REAR TURN SIGNAL LIGHT BULB A

MAINTENANCE REAR TURN SIGNAL LIGHT BULB REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 81497A 1.REMOVE REAR UPPER COMBINATION LIGHT COVER RH (for LED Type)

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for LED Type)>REMOVAL201906,999999,_59,_079256,_0396100,RM100000001IFPD_03_0002,

Hide Display 81498 2.REMOVE REAR COMBINATION LIGHT COVER LH (for LED Type)

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for LED Type)>REMOVAL201906,999999,_59,_079256,_0396100,RM100000001IFPD_03_0003,

Hide Display 3.REMOVE REAR COMBINATION LIGHT ASSEMBLY LH

for Bulb Type:

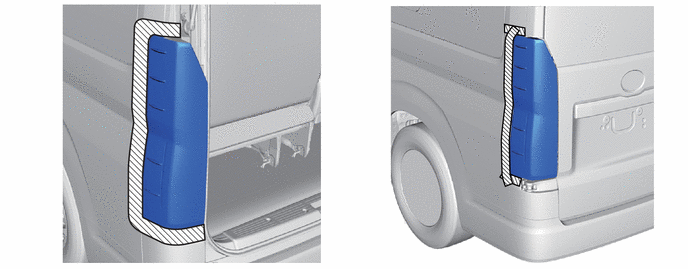

Apply protective tape around the rear combination light assembly LH.

0.698,0.115 0.948,0.354 0.25,0.24 12 true *A 4.156,0.125 4.385,0.344 0.229,0.219 12 true *B

*A	except Double Swing Out Type	*B	for Double Swing Out Type
	Protective Tape	-	-

ii.

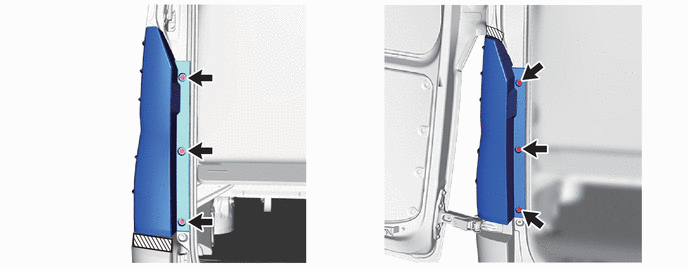

Remove the 3 screws.

0.948,0.115 1.198,0.354 0.25,0.24 12 false *A 4.104,0.125 4.344,0.354 0.24,0.229 12 true *B

except Double Swing Out Type

for Double Swing Out Type

iii.

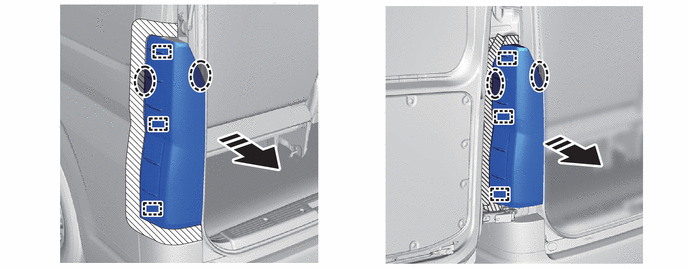

Place your hand at the location shown in the illustration and pull the rear combination light assembly LH toward the rear of the vehicle to detach the pin to remove it.

HINT:: Support the rear combination light assembly LH with one hand.

0.74,0.167 0.99,0.385 0.25,0.219 12 true *A 4.125,0.167 4.375,0.365 0.25,0.198 12 true *B

*A	except Double Swing Out Type	*B	for Double Swing Out Type
	Place Hands Here		Remove in this Direction

for LED Type:

0,0 0,0 false

Protective Tape

Apply protective tape around the rear combination light assembly LH.

ii.

Remove the 2 screws.

iii.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the removal direction and detach the pin.

iv.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the removal direction and detach the pin and remove the rear combination light assembly LH.

HINT:: Support the rear combination light assembly LH with one hand.

Hide Display 81550L 4.REMOVE REAR TURN SIGNAL LIGHT BULB

for Bulb Type:

1.135,0.76 1.354,1.125 true 2.906,0.479 3.094,0.333 true 1.406,1.073 1.604,1.25 0.198,0.177 10 true *a 3.135,0.24 3.333,0.417 0.198,0.177 10 true *b

*a	Matchmark
*b	Unlock Position Mark
	Turn in this Direction

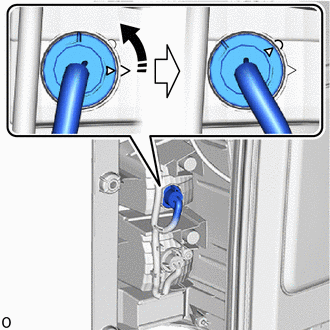

Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.

for LED Type:

0.542,0.813 0.625,1.25 true 2.156,1.281 2.208,1.125 true 0.552,1.271 0.75,1.448 0.198,0.177 10 true *a 2.031,1.292 2.229,1.469 0.198,0.177 10 true *b

*a	Matchmark
*b	Unlock Position Mark
	Turn in this Direction

Detach the clamp.

ii.

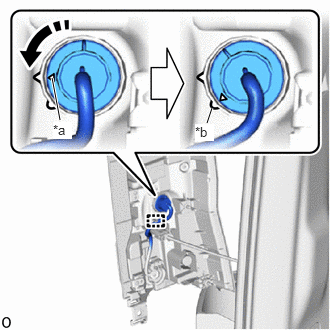

Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.

Remove the rear turn signal light bulb from the bulb socket.
