RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0397101 BACK DOOR OUTSIDE GARNISH(except Wagon) A

EXTERIOR PANELS / TRIM BACK DOOR OUTSIDE GARNISH(except Wagon) DISASSEMBLY

PROCEDURE

Hide Display 76825 1.REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR

HINT:: When removing the back door outside garnish protector, if the double-sided tape is difficult to remove, heat the adhesive of the back door outside garnish protector and back door outside garnish sub-assembly using a heat light.

Standard Value:

Part	Temperature
Back Door Outside Garnish Sub-assembly	20 to 30°C (68 to 86°F)
Back Door Outside Garnish Protector	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door outside garnish sub-assembly and back door outside garnish protector excessively.

Remove the back door outside garnish protector.

0.333,0.396 0.708,0.635 0.375,0.24 12 false *A 0.281,2.073 0.656,2.313 0.375,0.24 12 false *B

for Double Swing Out Type

except Double Swing Out Type

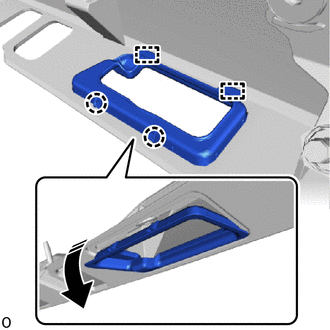

Hide Display 76822B 2.REMOVE BACK DOOR GARNISH SIDE PROTECTOR LH

0,0 0,0 false

Remove in this Direction

Detach the claw and guide and remove the back door garnish side protector LH.

Hide Display 76821B 3.REMOVE BACK DOOR GARNISH SIDE PROTECTOR RH

Hide Display 76839A 4.REMOVE BACK DOOR GARNISH COVER (w/ Back Door Garnish Cover)

HINT:: When removing the back door garnish cover, if the double-sided tape is difficult to remove, heat the adhesive of the back door outside garnish cover and back door garnish sub-assembly using a heat light.

Standard Value:

Part	Temperature
Back Door Outside Garnish Sub-assembly	20 to 30°C (68 to 86°F)
Back Door Garnish Cover	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door outside garnish sub-assembly and back door garnish cover excessively.

1.042,0.865 1.042,0.698 1.042,0.698 1.458,0.698 true 0.969,0.885 1.177,1.063 0.208,0.177 10 true *a

*a	Double-sided Tape

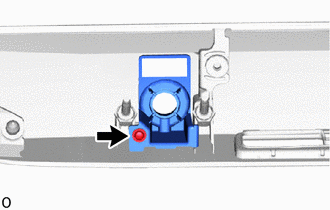

Remove the screw.

Detach the double-sided tape and remove the back door garnish cover.
