EXTERIOR PANELS / TRIM NAME PLATE REMOVAL

Hide Display 75311 1.REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

HINT:: When removing the radiator grille (or front panel) emblem, if the double-sided tape is difficult to remove, heat the adhesive of the radiator grille (or front panel) emblem and hood panel using a heat light.

Standard Value:

Part	Temperature
Hood Panel	40 to 60°C (104 to 140°F)
Radiator Grille (or Front Panel) Emblem	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the hood panel and radiator grille (or front panel) emblem excessively.

a.

for Wagon:

i.

0,0 0,0 false

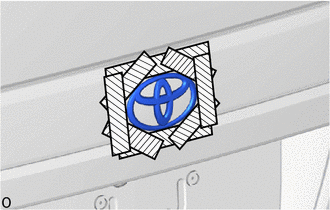

Protective Tape

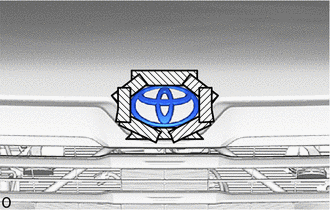

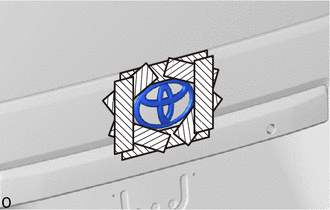

Apply protective tape around the radiator grille (or front panel) emblem.

ii.

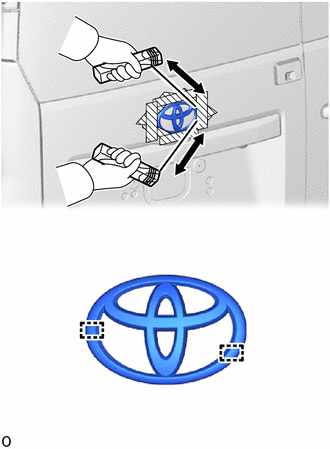

0.635,1.781 0.385,1.615 true 1.563,2.073 1.667,2.365 true 0.823,3.604 0.521,3.604 false 2.906,3.781 2.604,3.781 false 0.167,1.427 0.365,1.625 0.198,0.198 10 true *a 1.573,2.385 1.771,2.583 0.198,0.198 10 true *b 2.958,3.688 3.271,3.885 0.313,0.198 10 false *c 0.344,3.51 0.656,3.708 0.313,0.198 10 false *c

*a	Wooden Block
*b	Piano Wire
*c	Boss Position

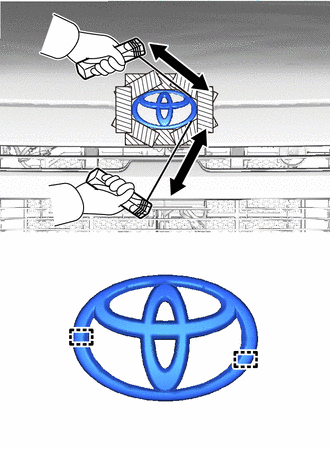

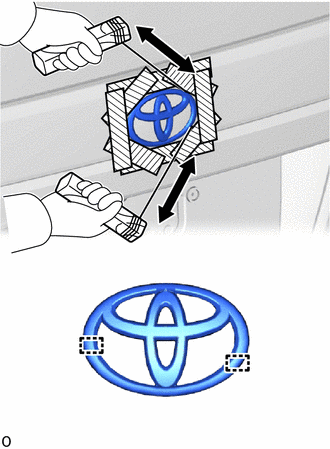

Insert piano wire between the hood panel and radiator grille (or front panel) emblem.

HINT:: Be careful of the boss positions.

iii.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

iv.

Pull the piano wire and scrape off the double-sided tape that holds the radiator grille (or front panel) emblem to the hood panel.

NOTICE:: Be careful not to damage the hood panel.

v.

Remove the radiator grille (or front panel) emblem.

vi.

Remove the protective tape.

b.

except Wagon:

i.

0,0 0,0 false

Protective Tape

Apply protective tape around the radiator grille (or front panel) emblem.

ii.

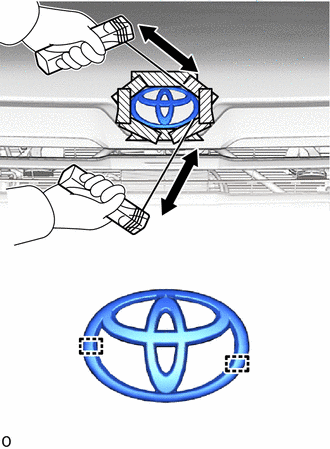

0.927,1.781 0.677,1.615 true 2.146,2.365 1.594,2 true 0.719,3.5 0.417,3.5 false 2.99,3.74 2.688,3.74 false 0.49,1.427 0.688,1.625 0.198,0.198 10 true *a 2.146,2.344 2.344,2.542 0.198,0.198 10 true *b 3.031,3.656 3.344,3.854 0.313,0.198 10 false *c 0.25,3.406 0.563,3.604 0.313,0.198 10 false *c

*a	Wooden Block
*b	Piano Wire
*c	Boss Position

Insert piano wire between the hood panel and radiator grille (or front panel) emblem.

HINT:: Be careful of the boss positions.

iii.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

iv.

Pull the piano wire and scrape off the double-sided tape that holds the radiator grille (or front panel) emblem to the hood panel.

NOTICE:: Be careful not to damage the hood panel.

v.

Remove the radiator grille (or front panel) emblem.

vi.

Remove the protective tape.

Hide Display 75431A 2.REMOVE BACK DOOR NO. 1 EMBLEM

HINT:: When removing the back door No. 1 emblem, if the double-sided tape is difficult to remove, heat the adhesive of the back door No. 1 emblem and back door panel using a heat light.

Standard Value:

Part	Temperature
Back Door Panel	40 to 60°C (104 to 140°F)
Back Door No. 1 Emblem	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door panel and back door No. 1 emblem excessively.

a.

0,0 0,0 false

Protective Tape

for Wagon:

i.

Apply protective tape around the back door No. 1 emblem.

ii.

0.604,1.865 0.354,1.698 true 1.698,2.49 1.51,2.156 true 0.813,3.594 0.51,3.594 false 2.906,3.771 2.604,3.771 false 0.156,1.521 0.354,1.719 0.198,0.198 10 true *a 1.625,2.521 1.823,2.719 0.198,0.198 10 true *b 2.958,3.667 3.271,3.865 0.313,0.198 10 false *c 0.323,3.5 0.635,3.698 0.313,0.198 10 false *c

*a	Wooden Block
*b	Piano Wire
*c	Boss Position

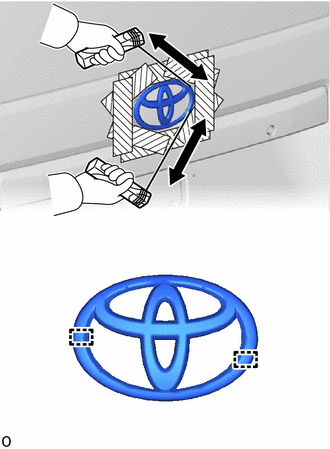

Insert piano wire between the back door panel and back door No. 1 emblem.

HINT:: Be careful of the boss positions.

iii.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

iv.

Pull the piano wire and scrape off the double-sided tape that holds the back door No. 1 emblem to the back door panel.

NOTICE:: Be careful not to damage the back door panel.

v.

Remove the back door No. 1 emblem.

vi.

Remove the protective tape.

b.

0,0 0,0 false

Protective Tape

except Wagon:

i.

Apply protective tape around the back door No. 1 emblem.

ii.

0.927,1.688 0.677,1.521 true 2.135,2.25 1.583,1.885 true 0.719,3.5 0.417,3.5 false 2.99,3.74 2.688,3.74 false 0.438,1.375 0.635,1.573 0.198,0.198 10 true *a 2.177,2.198 2.375,2.396 0.198,0.198 10 true *b 3.031,3.656 3.344,3.854 0.313,0.198 10 false *c 0.25,3.406 0.563,3.604 0.313,0.198 10 false *c

*a	Wooden Block
*b	Piano Wire
*c	Boss Position

Insert piano wire between the back door panel and back door No. 1 emblem.

HINT:: Be careful of the boss positions.

iii.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

iv.

Pull the piano wire and scrape off the double-sided tape that holds the back door No. 1 emblem to the back door panel.

NOTICE:: Be careful not to damage the back door panel.

v.

Remove the back door No. 1 emblem.

vi.

Remove the protective tape.

c.

0,0 0,0 false

Protective Tape

for Double Swing Out Type:

i.

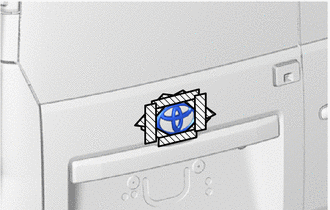

Apply protective tape around the back door No. 1 emblem.

ii.

0.49,3.448 0.823,3.448 false 2.531,3.667 2.865,3.667 false 1.729,1.688 1.792,2.042 true 0.823,1.292 1.031,1.5 true 0.313,3.375 0.625,3.573 0.313,0.198 10 false *c 2.906,3.563 3.219,3.76 0.313,0.198 10 false *c 0.604,1.094 0.813,1.292 0.208,0.198 10 true *a 1.729,2.052 1.938,2.25 0.208,0.198 10 true *b

*a	Wooden Block
*b	Piano Wire
*c	Boss Position

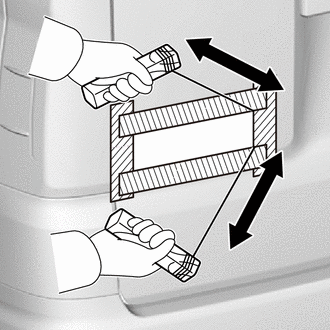

Insert piano wire between the back door panel and back door No. 1 emblem.

HINT:: Be careful of the boss positions.

iii.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

iv.

Pull the piano wire and scrape off the double-sided tape that holds the back door No. 1 emblem to the back door panel.

NOTICE:: Be careful not to damage the back door panel.

v.

Remove the back door No. 1 emblem.

vi.

Remove the protective tape.

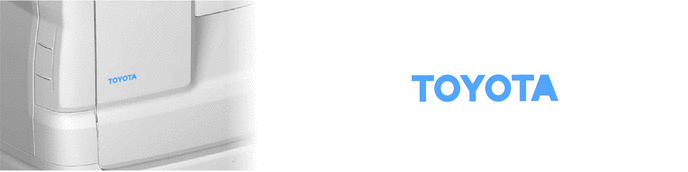

Hide Display 3.REMOVE BACK DOOR NO. 2 NAME PLATE (for Double Swing Out Type)

HINT:: When removing the back door No. 2 name plate, if the double-sided tape is difficult to remove, heat the adhesive of the back door No. 2 name plate and back door panel using a heat light.

Standard Value:

Part	Temperature
Back Door Panel	40 to 60°C (104 to 140°F)
Back Door No. 2 Name Plate	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door panel and back door No. 2 name plate excessively.

a.

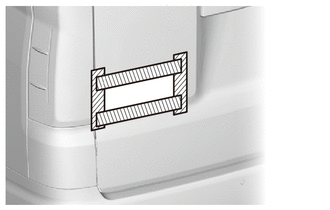

0,0 0,0 false

Protective Tape

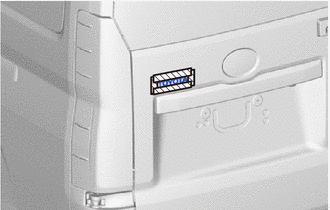

Apply protective tape around the back door No. 2 name plate.

b.

2.01,2.292 2.323,2.51 true 2.271,1.479 2.844,1.479 true 2.365,2.521 2.521,2.698 0.156,0.177 10 true *a 2.906,1.406 3.063,1.583 0.156,0.177 10 true *b

*a	Wooden Block
*b	Piano Wire

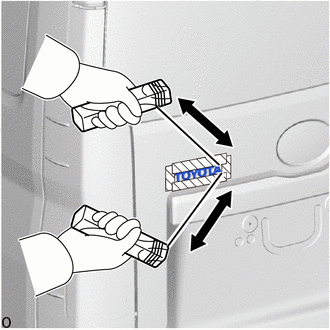

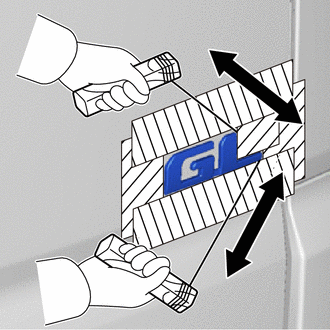

Insert piano wire between the back door panel and back door No. 2 name plate.

c.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

d.

Pull the piano wire and scrape off the double-sided tape that holds the back door No. 2 name plate to the back door panel.

NOTICE:: Be careful not to damage the back door panel.

e.

Remove the back door No. 2 name plate.

f.

Remove the protective tape.

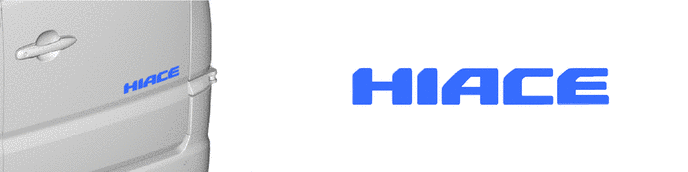

Hide Display 75443 4.REMOVE BACK DOOR NO. 3 NAME PLATE

HINT:: When removing the back door No. 3 name plate, if the double-sided tape is difficult to remove, heat the adhesive of the back door No. 3 name plate and back door panel using a heat light.

Standard Value:

Part	Temperature
Back Door Panel	40 to 60°C (104 to 140°F)
Back Door No. 3 Name Plate	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door panel and back door No. 3 name plate excessively.

a.

for Wagon:

i.

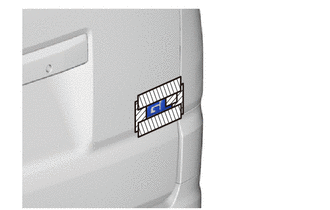

0,0 0,0 false

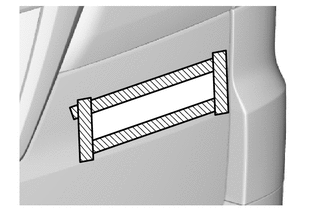

Protective Tape

Apply protective tape around the back door name plate.

ii.

2.167,2.677 2.479,2.896 true 1.74,2.625 1.792,2.958 true 2.479,2.865 2.635,3.042 0.156,0.177 10 true *a 1.75,2.969 1.906,3.146 0.156,0.177 10 true *b

*a	Wooden Block
*b	Piano Wire

Insert piano wire between the back door panel and back door No. 3 name plate.

iii.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

iv.

Pull the piano wire and scrape off the double-sided tape that holds the back door No. 3 name plate to the back door panel.

NOTICE:: Be careful not to damage the back door panel.

v.

Remove the back door No. 3 name plate.

vi.

Remove the protective tape.

b.

except Wagon:

i.

0,0 0,0 false

Protective Tape

Apply protective tape around the back door name plate.

ii.

0.719,2.302 1.031,2.521 true 2.063,2.823 2.375,3.042 true 0.531,2.135 0.688,2.313 0.156,0.177 10 true *a 2.375,3.021 2.531,3.198 0.156,0.177 10 true *b

*a	Wooden Block
*b	Piano Wire

Insert piano wire between the back door panel and back door No. 3 name plate.

iii.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

iv.

Pull the piano wire and scrape off the double-sided tape that holds the back door No. 3 name plate to the back door panel.

NOTICE:: Be careful not to damage the back door panel.

v.

Remove the back door No. 3 name plate.

vi.

Remove the protective tape.

Hide Display 75441B 5.REMOVE BACK DOOR NAME PLATE (for Plate Type)

HINT:: When removing the back door name plate, if the double-sided tape is difficult to remove, heat the adhesive of the back door name plate and back door panel using a heat light.

Standard Value:

Part	Temperature
Back Door Panel	40 to 60°C (104 to 140°F)
Back Door Name Plate	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door panel and back door name plate excessively.

a.

for Wagon:

i.

0,0 0,0 false

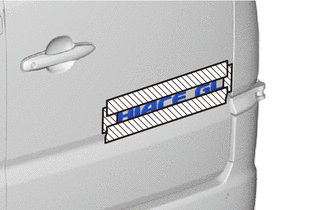

Protective Tape

Apply protective tape around the back door name plate.

ii.

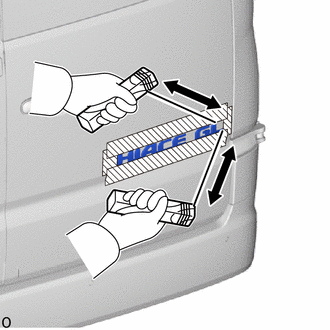

0.615,1.99 0.792,2.135 true 1.688,2.469 2.104,2.885 true 0.385,1.771 0.594,1.979 0.208,0.208 10 true *a 2.104,2.875 2.313,3.083 0.208,0.208 10 true *b

*a	Wooden Block
*b	Piano Wire

Insert piano wire between the back door panel and back door name plate.

iii.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

iv.

Pull the piano wire and scrape off the double-sided tape that holds the back door name plate to the back door panel.

NOTICE:: Be careful not to damage the back door panel.

v.

Remove the back door name plate.

vi.

Remove the protective tape.

b.

except Wagon:

i.

0,0 0,0 false

Protective Tape

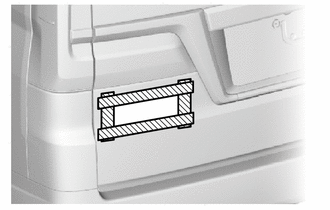

Apply protective tape around the back door name plate.

ii.

0.792,2.01 1.125,2.25 true 2.125,2.458 2.49,3.01 true 0.604,1.802 0.781,2 0.177,0.198 10 true *a 2.417,3.031 2.604,3.219 0.188,0.188 10 true *b

*a	Wooden Block
*b	Piano Wire

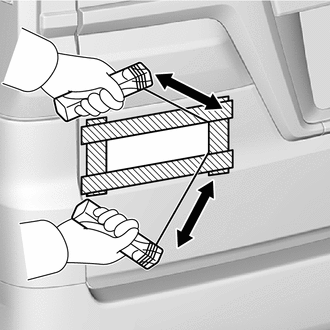

Insert piano wire between the back door panel and back door name plate.

iii.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

iv.

Pull the piano wire and scrape off the double-sided tape that holds the back door name plate to the back door panel.

NOTICE:: Be careful not to damage the back door panel.

v.

Remove the back door name plate.

vi.

Remove the protective tape.

c.

for Double Swing Out Type:

i.

0,0 0,0 false

Protective Tape

Apply protective tape around the back door name plate.

ii.

0.469,1.948 0.802,2.188 true 1.813,2.49 2.177,3.042 true 0.26,1.802 0.438,2 0.177,0.198 10 true *a 2.083,3.042 2.271,3.229 0.188,0.188 10 true *b

*a	Wooden Block
*b	Piano Wire

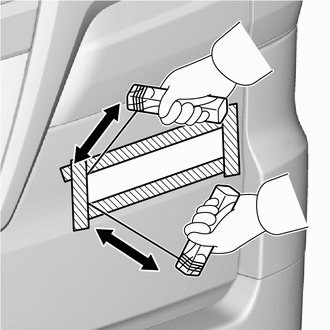

Insert piano wire between the back door panel and back door name plate.

iii.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

iv.

Pull the piano wire and scrape off the double-sided tape that holds the back door name plate to the back door panel.

NOTICE:: Be careful not to damage the back door panel.

v.

Remove the back door name plate.

vi.

Remove the protective tape.

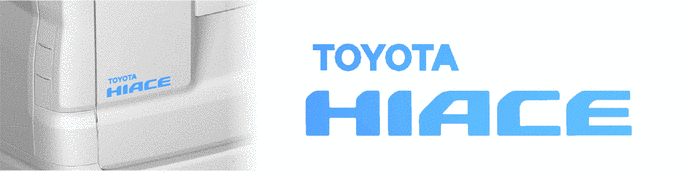

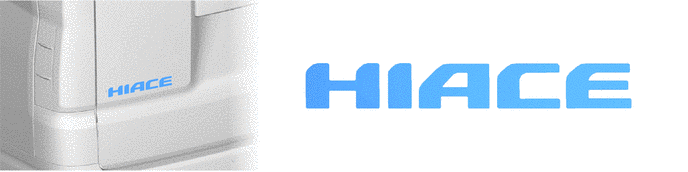

Hide Display 75441B 6.REMOVE BACK DOOR NAME PLATE (for Sticker Type)

HINT:: When removing the back door name plate, if the double-sided tape is difficult to remove, heat the adhesive of the back door name plate and back door panel using a heat light.

Standard Value:

Part	Temperature
Back Door Panel	40 to 60°C (104 to 140°F)
Back Door Name Plate	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door panel and back door name plate excessively.

a.

for Type A:

i.

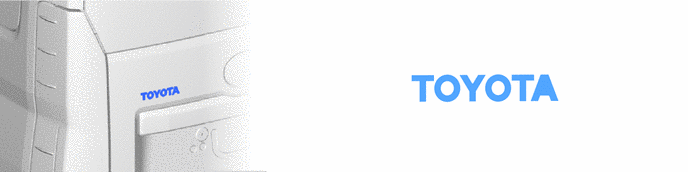

Pull back on one of the ends of the back door name plate to remove it.

HINT:: When pulling on the back door name plate, pull it parallel to the back door panel.

b.

for Type B:

i.

Pull back on one of the ends of the back door name plate to remove it.

HINT:: When pulling on the back door name plate, pull it parallel to the back door panel.

c.

for Type C:

i.

Pull back on one of the ends of the back door name plate to remove it.

HINT:: When pulling on the back door name plate, pull it parallel to the back door panel.

d.

for Double Swing Out Type:

i.

for LH Side:

Pull back on one of the ends of the back door name plate to remove it.

HINT:: When pulling on the back door name plate, pull it parallel to the back door panel.

ii.

for RH Side:

Pull back on one of the ends of the back door name plate to remove it.

HINT:: When pulling on the back door name plate, pull it parallel to the back door panel.

EXTERIOR PANELS / TRIM NAME PLATE REMOVAL

PROCEDURE
